INSTACOOL ULTRA
16K RV Air Conditioner with Heat Pump
$1,299.99
$1,749.99
Save $450.00
Summer Trip Discount🏖️
Extra savings at checkout
NEW10 can be combined with eligible product discount codes.
Summer130
Fast cooling with less cabin noise.

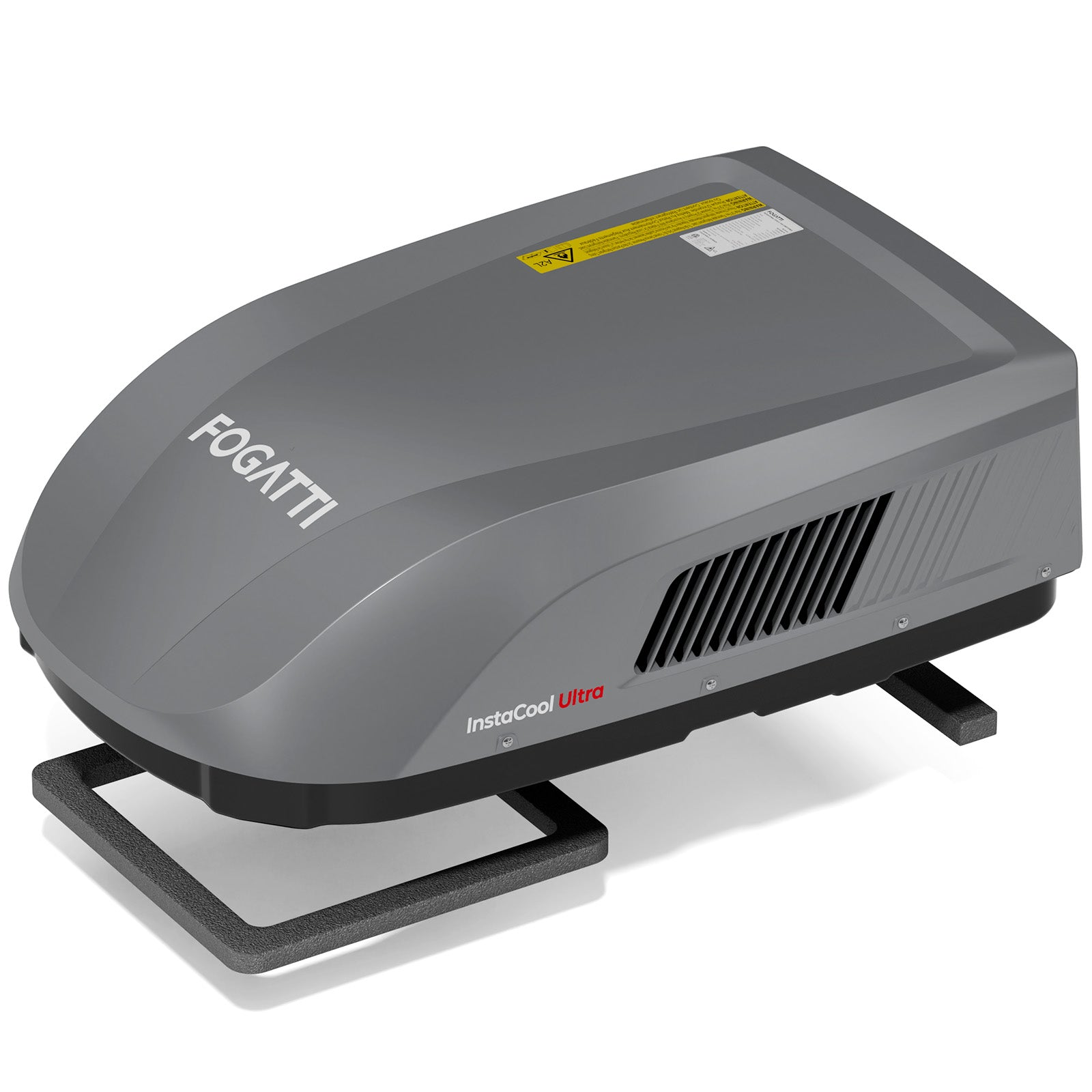

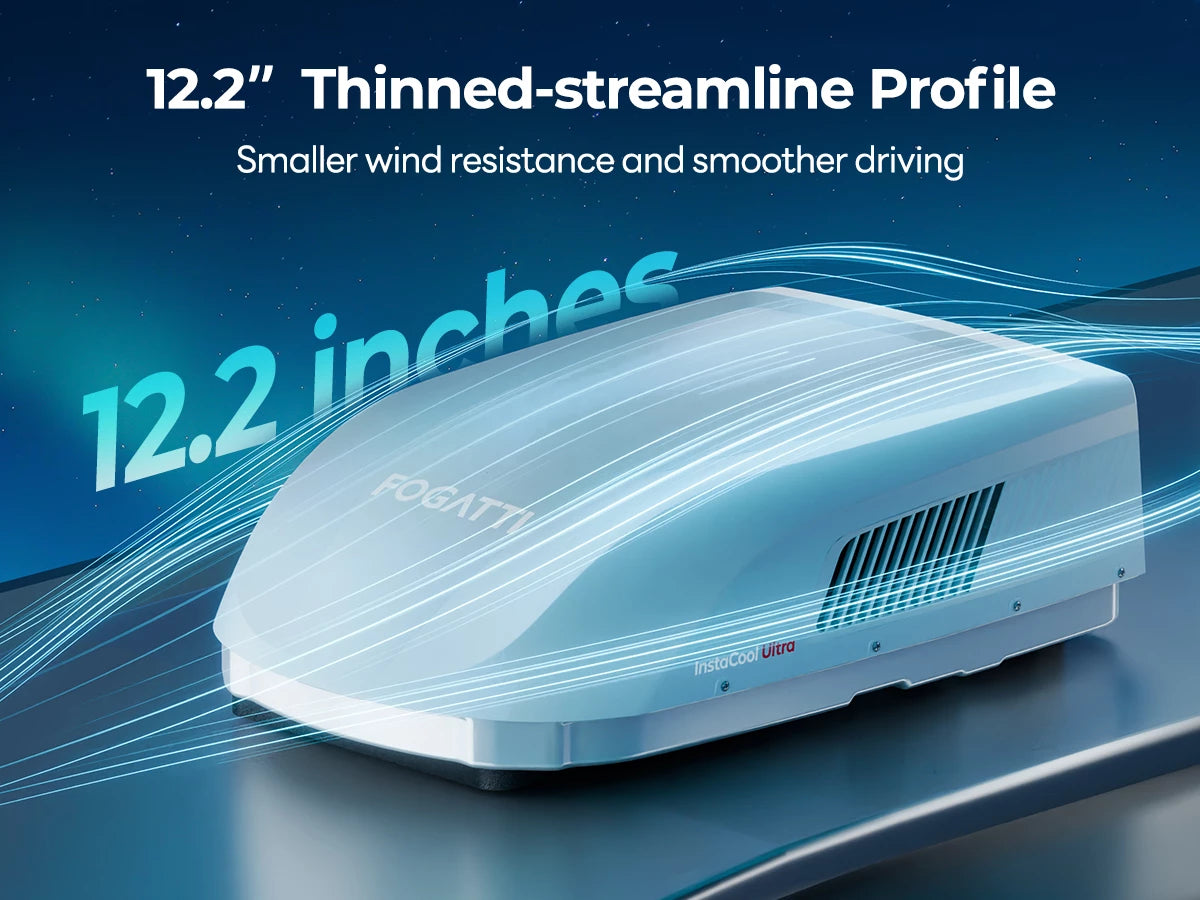

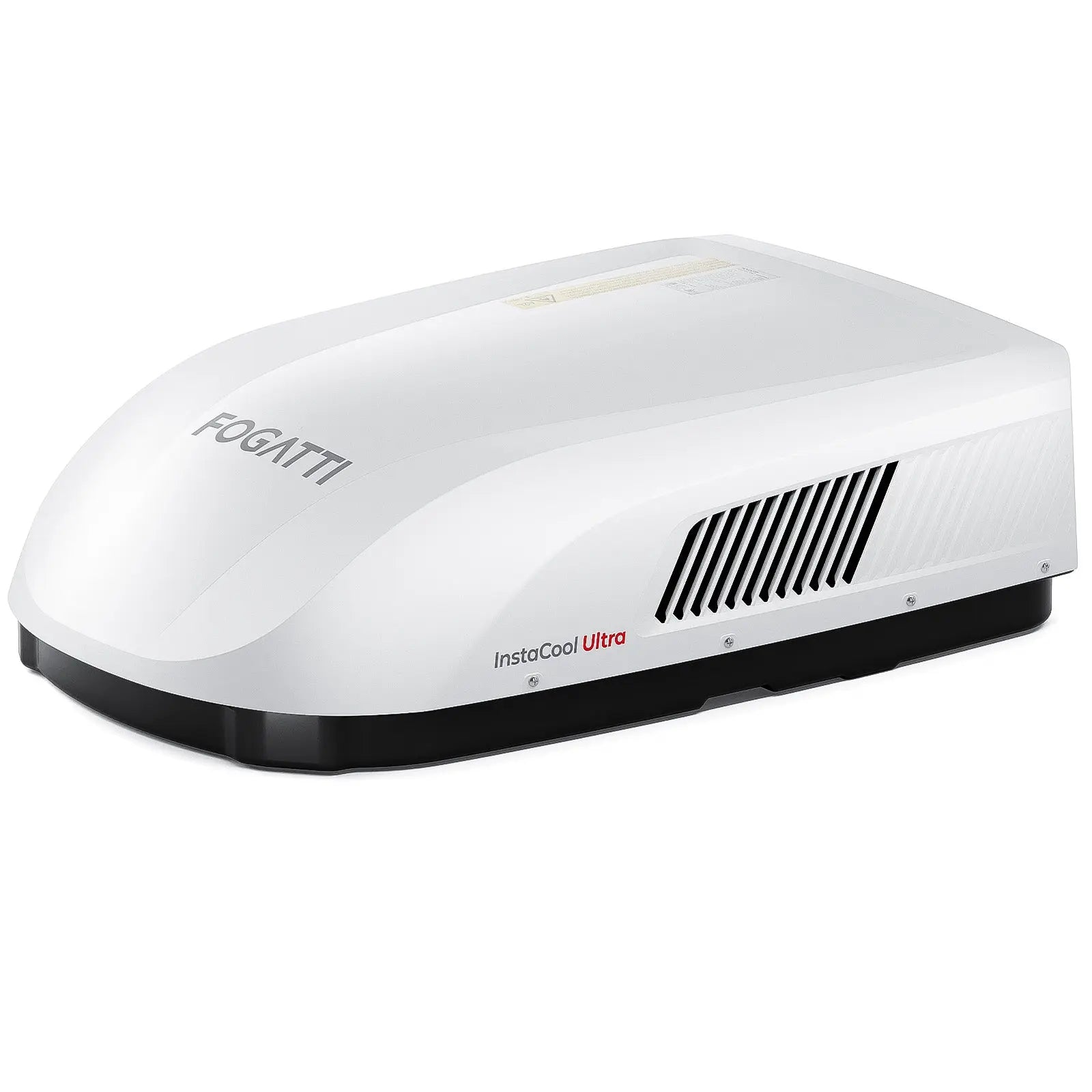

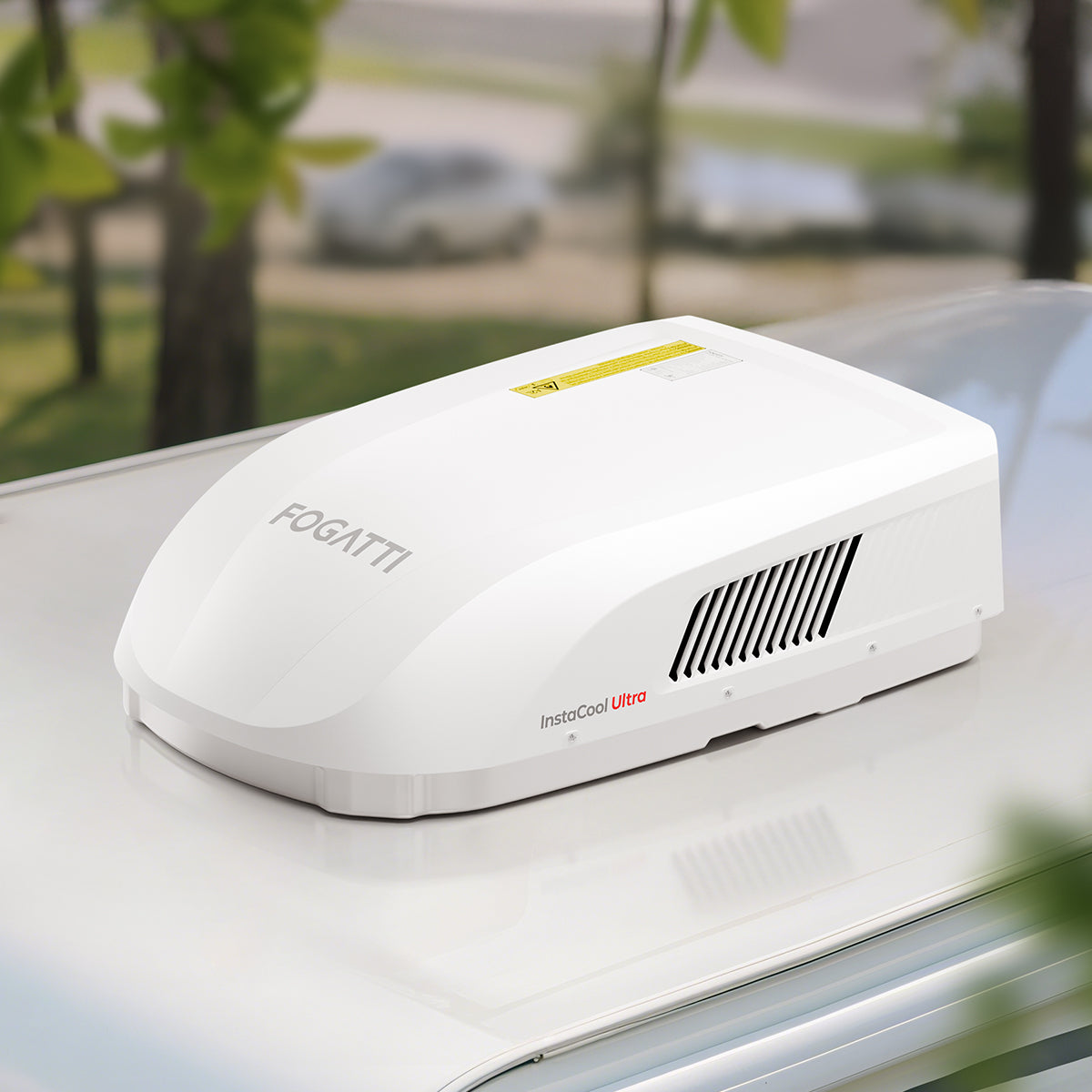

InstaCool Ultra combines 16,000 BTU cooling, 12,500 BTU heat-pump heating and 418 CFM airflow in a low-profile non-ducted rooftop unit. Low mode runs below 43 dB, while app, remote and touchscreen controls keep everyday operation simple.
View all features ↓16,000 BTUCooling for RVs up to approximately 36 ft
12,500 BTUHeat-pump warmth for milder weather
418 CFMDual-motor, three-impeller airflow
<43 dBLow-mode sound for quieter nights
Secure checkout
More options available at checkout
30-day returns
Free contiguous U.S. shipping
2-year warranty
Not sure this is the right InstaCool?
Compare all models
Fit and installation

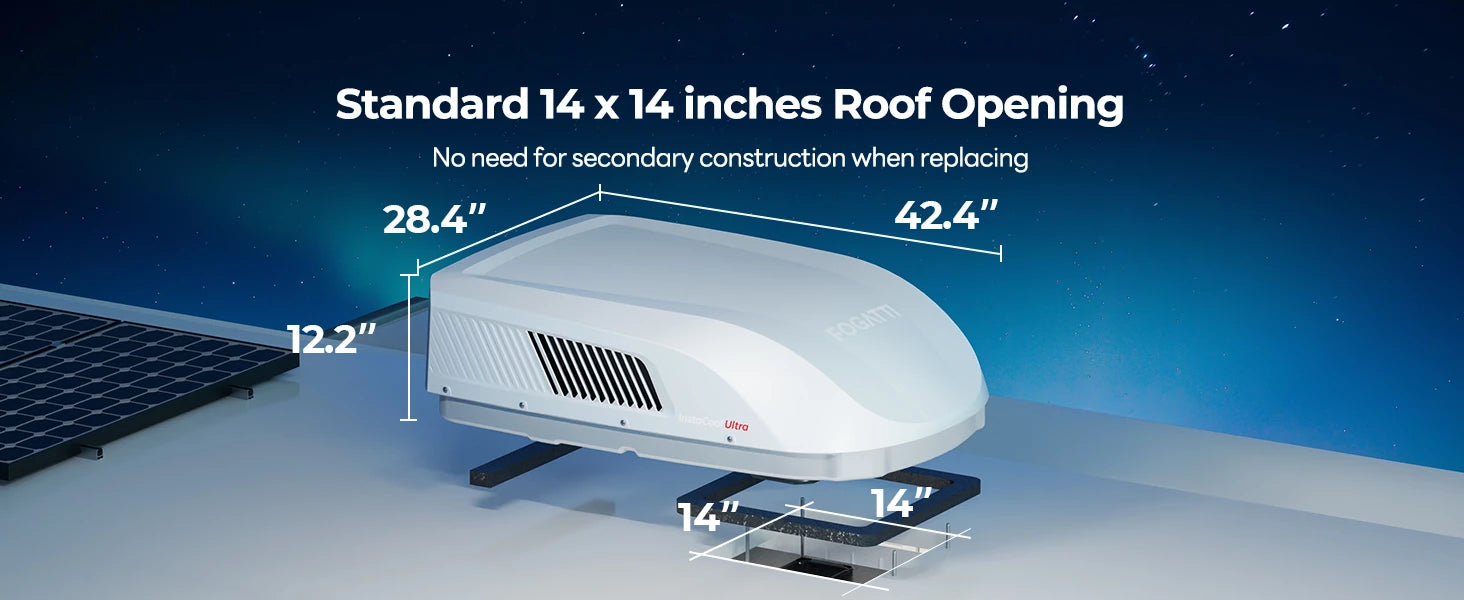

- Roof opening
- 14.25 × 14.25 in

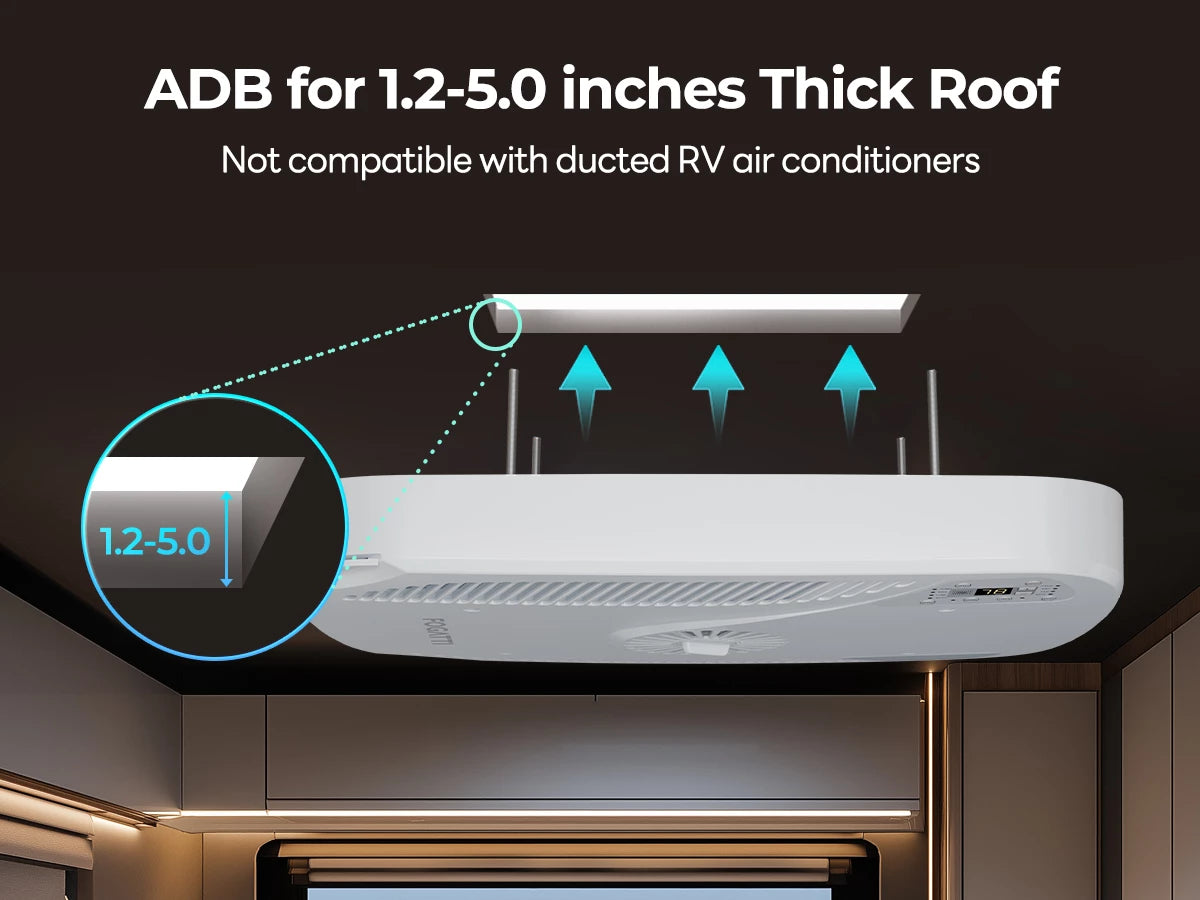

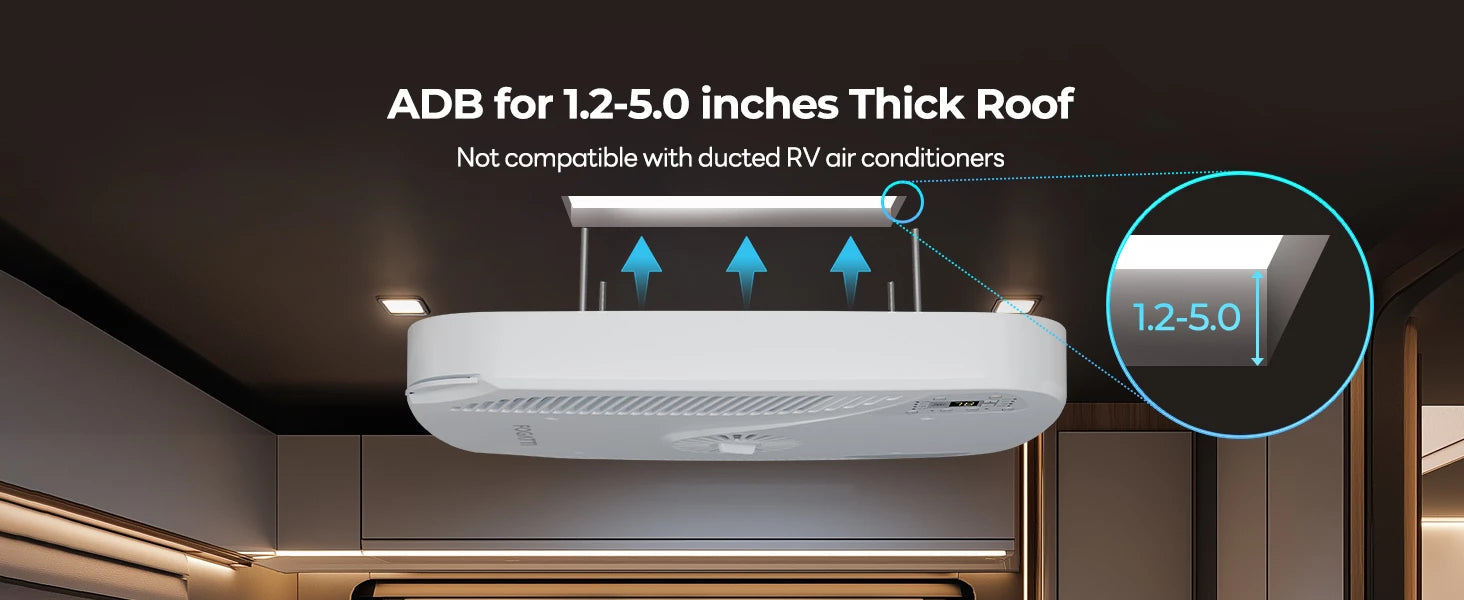

- Roof thickness
- 1.2–5.0 in
- Ceiling layout
- Non-ducted ADB
- Power supply
- 115V / 60Hz
- Rated input
- 1270W / 11A
- Rooftop weight
- 100.3 lb

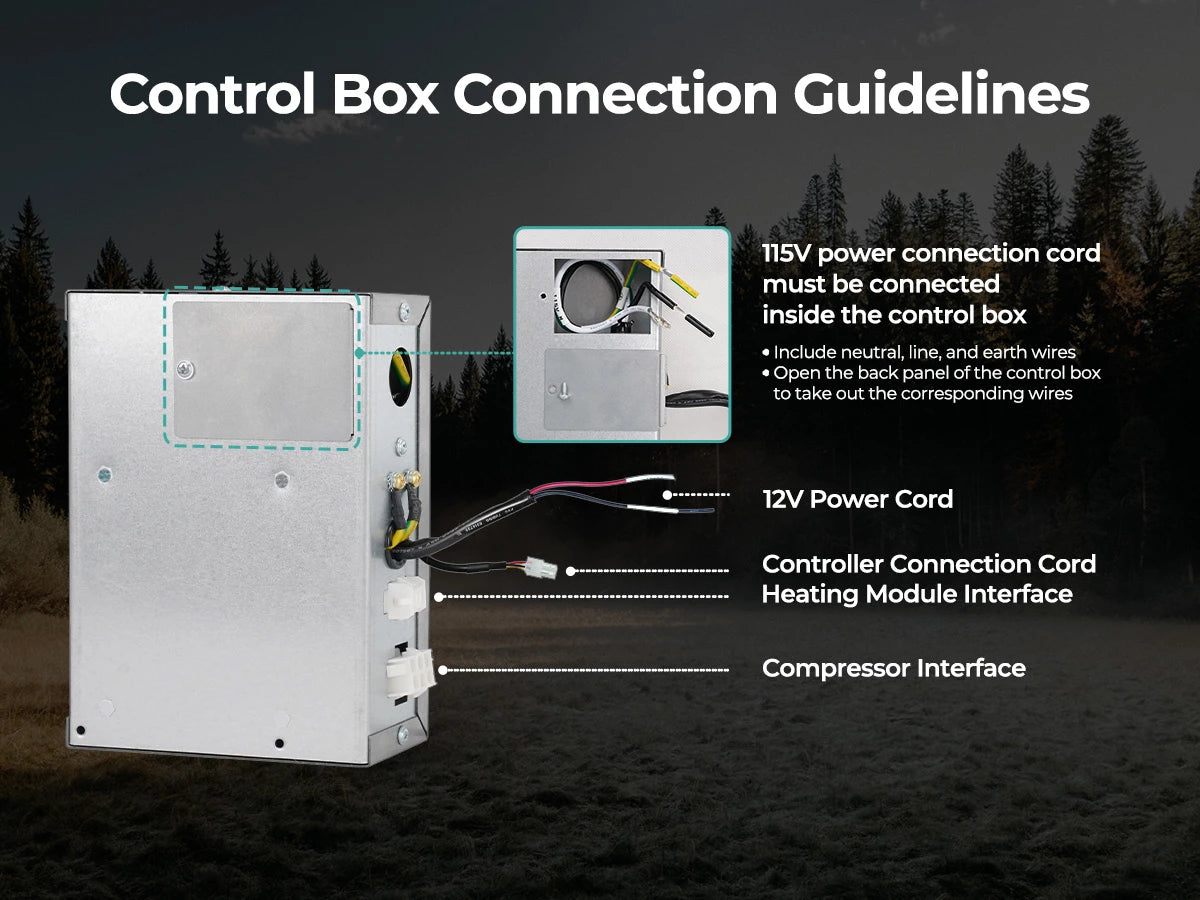

Professional installation is recommended because the job involves rooftop lifting, weather sealing and 115V electrical work.

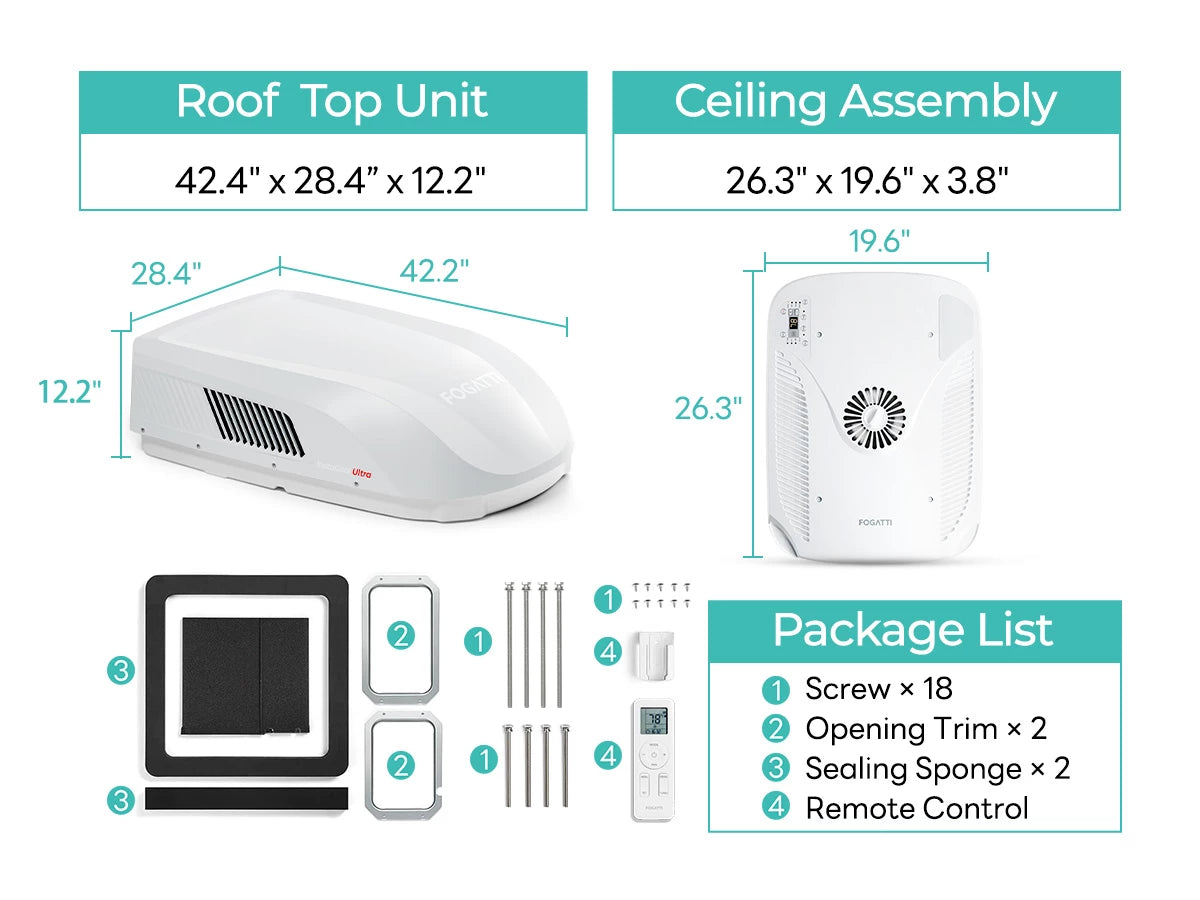

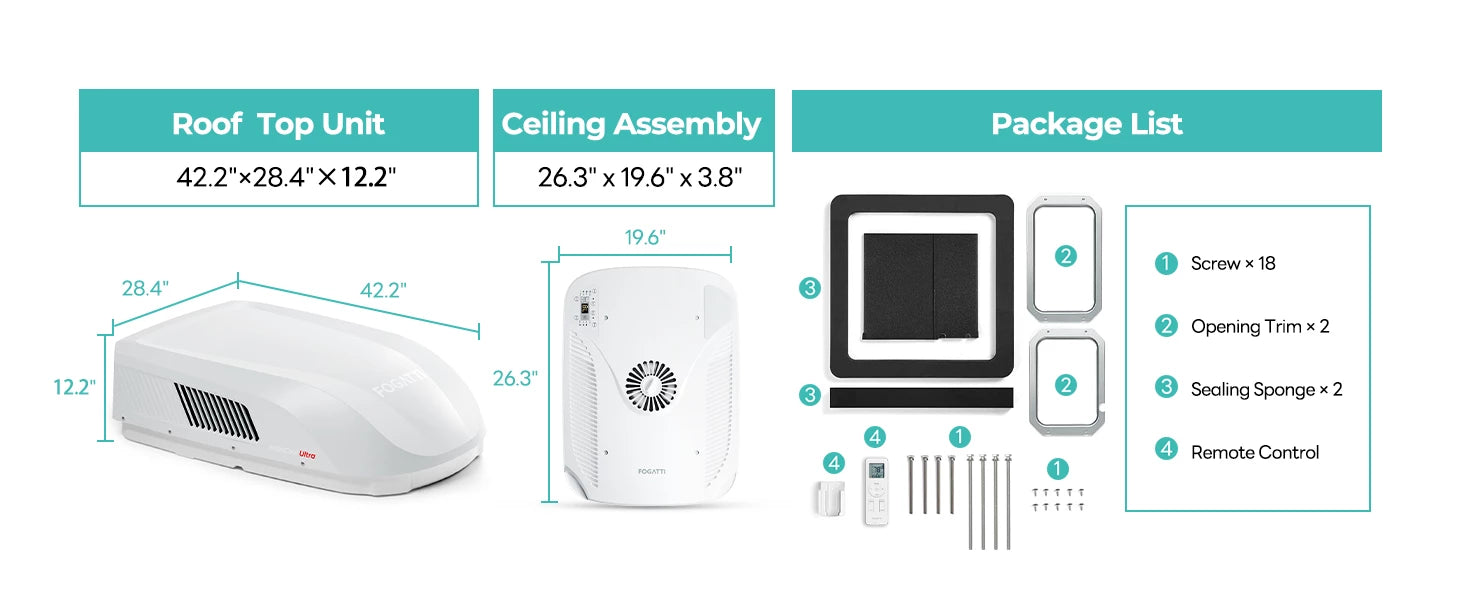

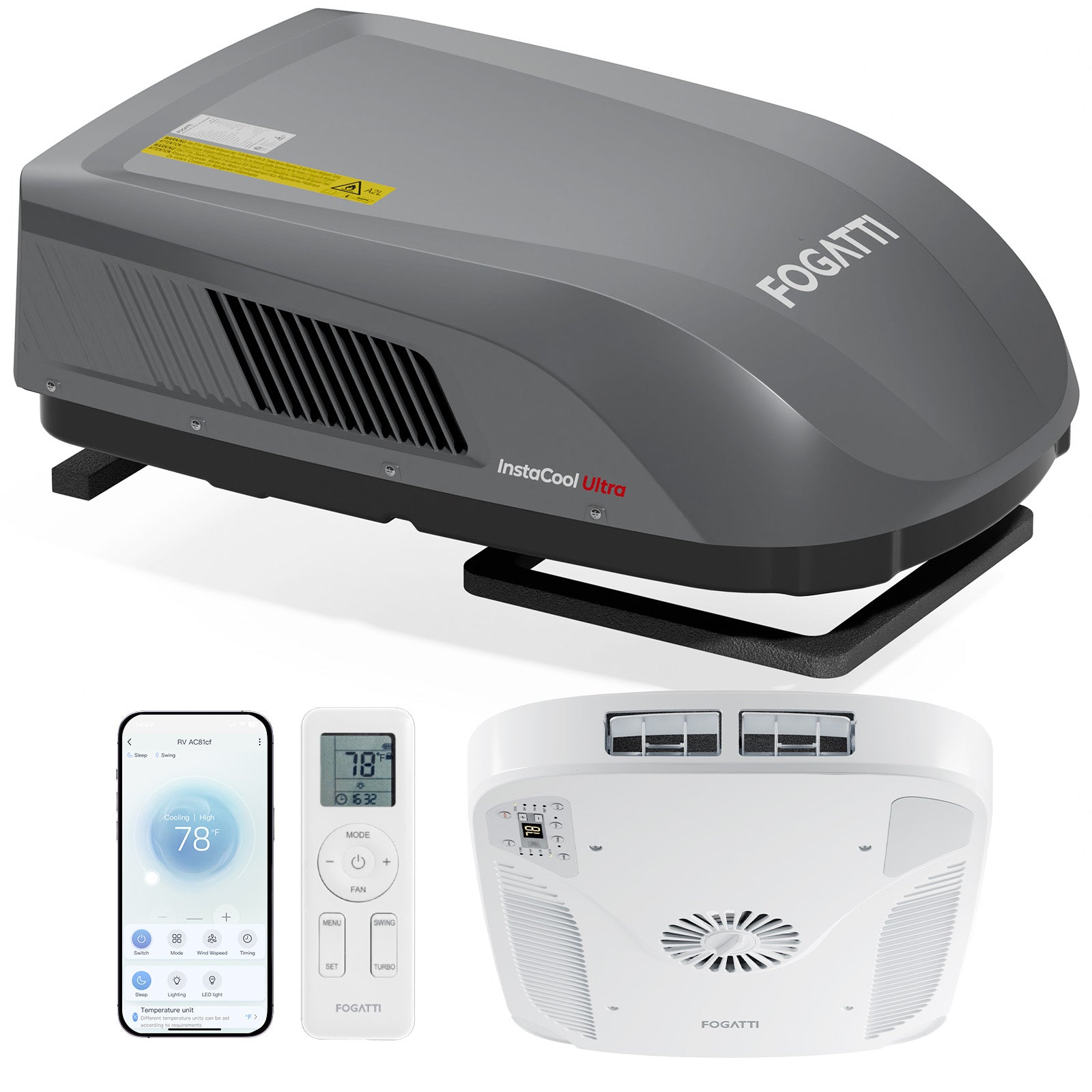

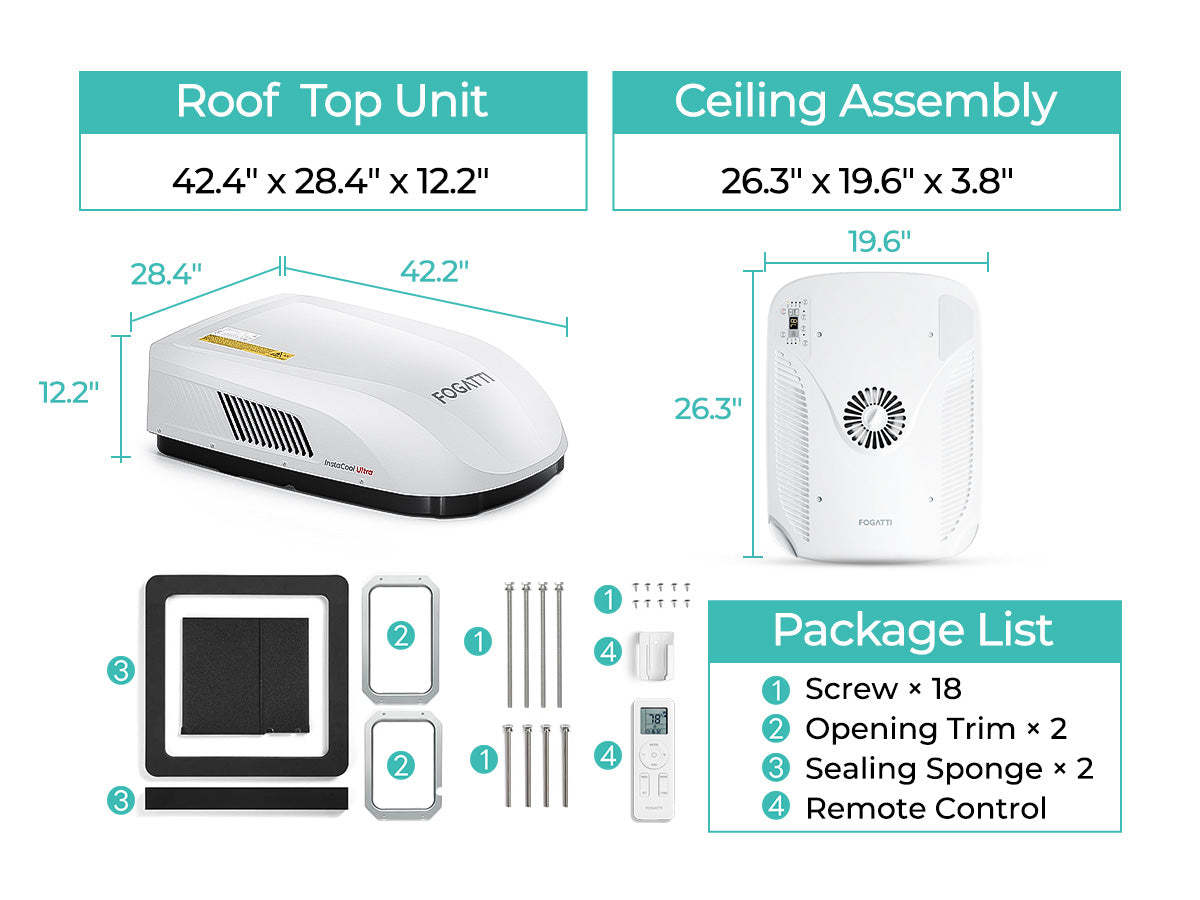

What’s included

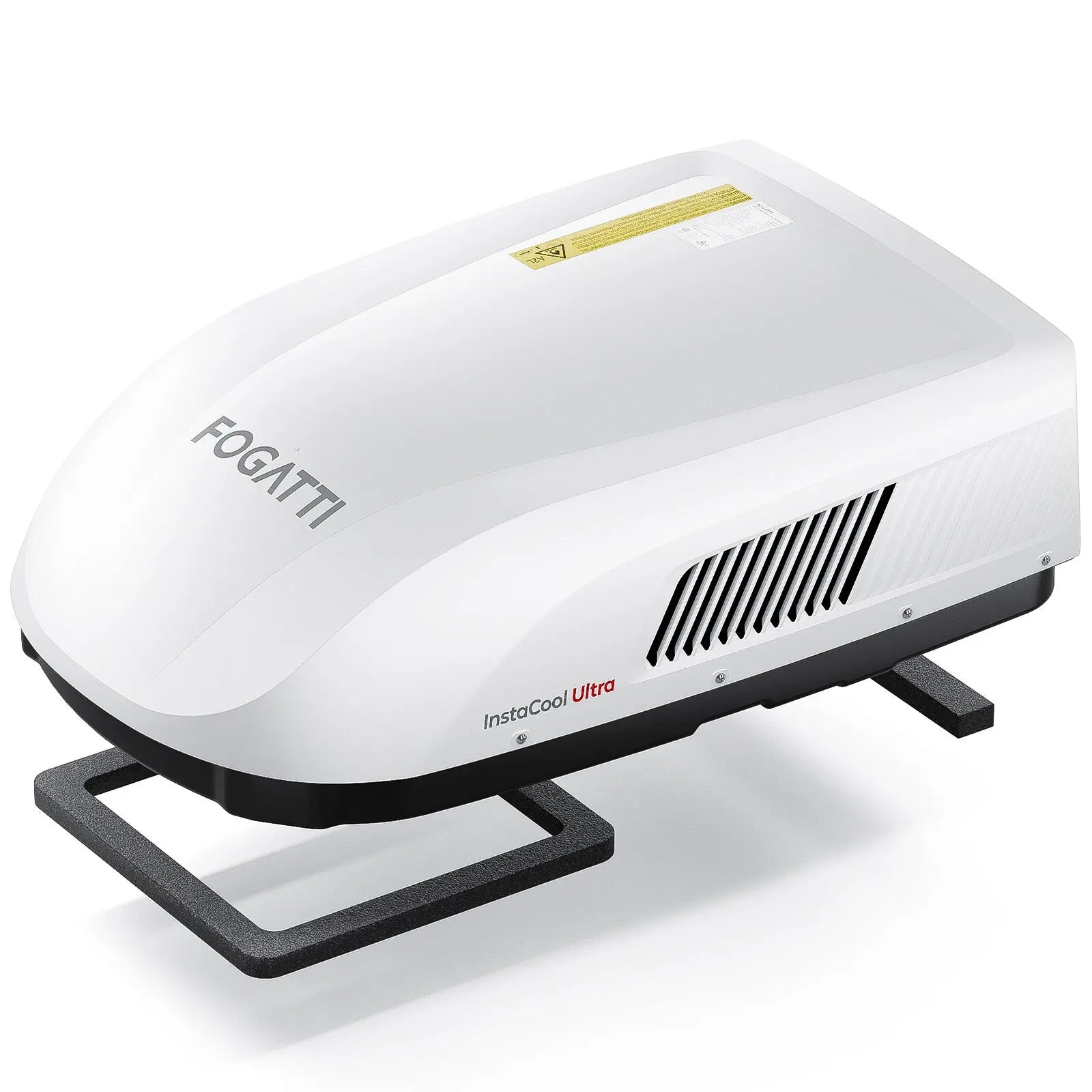

- Rooftop unitInstaCool Ultra air conditioner
- Ceiling assemblyNon-ducted air distribution box
- ControlsHandheld remote control
- Mounting kitHardware and 5.3-inch bolt
- Roof sealing materialsFor weather-tight installation
- Product documentationInstallation and operation manual
Package contents are shown for the selected configuration.
Specifications
- Cooling capacity
- 16,000 BTU/h
- Heat-pump capacity
- 12,500 BTU/h
- Airflow
- 418 CFM
- Set temperature range
- 61–86°F
- Low-mode sound
- Below 43 dB
- Refrigerant
- R32
- Rated input / current
- 1270W / 11A
- Rooftop dimensions

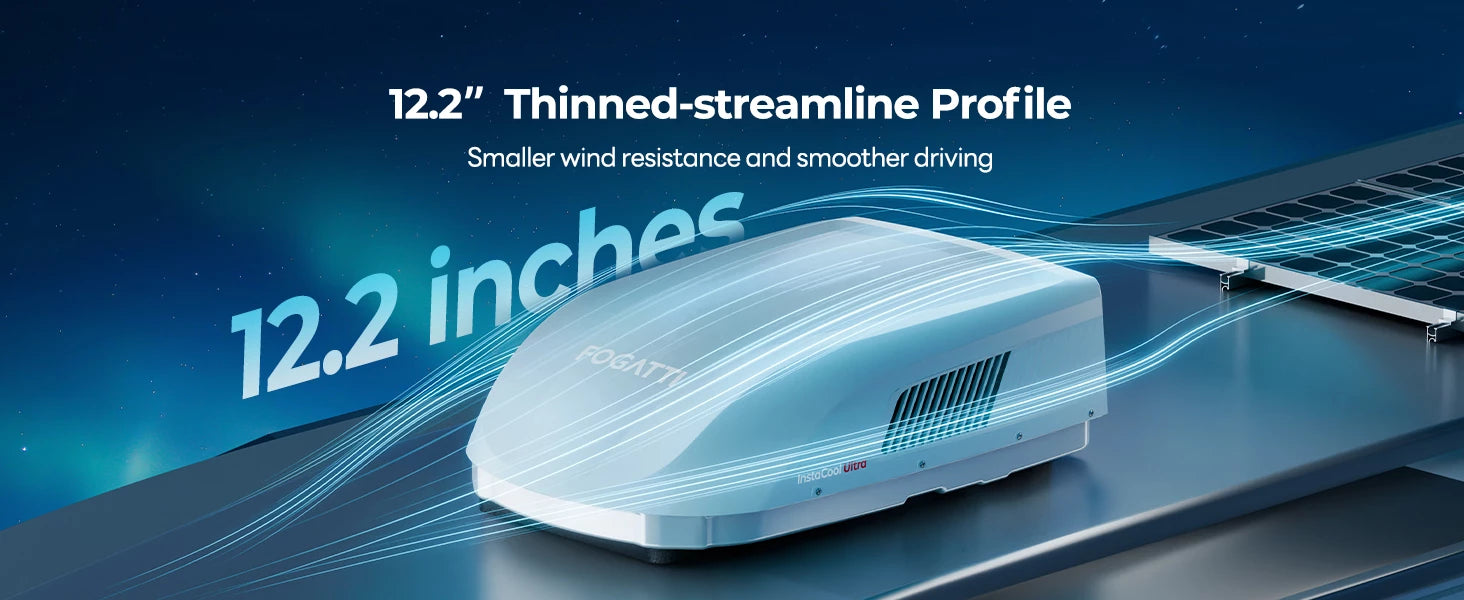

- 42.4 × 28.4 × 12.2 in
- ADB dimensions
- 26.3 × 19.6 × 3.8 in
- Rooftop / ADB weight
- 100.3 / 12.1 lb
Common questions
Will it replace a ducted RV air conditioner?
No. This configuration is designed for a non-ducted ceiling assembly.
Does the heat pump replace a propane furnace?
No. It is intended for mild-weather heating. Use a properly sized furnace in freezing conditions.
Can it run from an inverter?
Yes, when the complete inverter, battery bank, wiring and charging system can support compressor startup and continuous load.
How quiet is it at night?
Low mode is rated below 43 dB. Actual cabin sound depends on installation, fan mode and RV construction.
Recommended for your RV setup
Build a more complete comfort setup around a non-ducted rooftop AC. Confirm water-heater openings or furnace duct requirements before ordering.
For common tank-water-heater replacement openings
InstaShower Ultra
+$899.99
Add stable on-demand hot water with a built-in mixing tank. Confirm the existing door opening, propane, 12V power, plumbing and venting before ordering.
Check door fit and installation
For larger ducted RVs and colder travel
InstaHeat 35K
+$799.99
$1,299.99
Add stronger propane heat through the RV duct system. Confirm cabinet space, central ductwork, 12V power and LP supply before ordering.
Check furnace fit and options
InstaCool Ultra
Offer available
·
$1,299.99
$1,749.99
Save $450.00
QUIET ALL-SEASON COMFORT
Quiet comfort for every season
InstaCool Ultra combines 16,000 BTU cooling, 12,500 BTU heat-pump heating, 418 CFM airflow and low-mode sound below 43 dB. It is built for non-ducted RV owners who value quiet nights as much as daytime cooling.
16,000 BTUSummer cooling
12,500 BTUMild-weather heat pump
418 CFMCabin airflow
<43 dBLow-mode sound
Cool fast without dominating the cabin

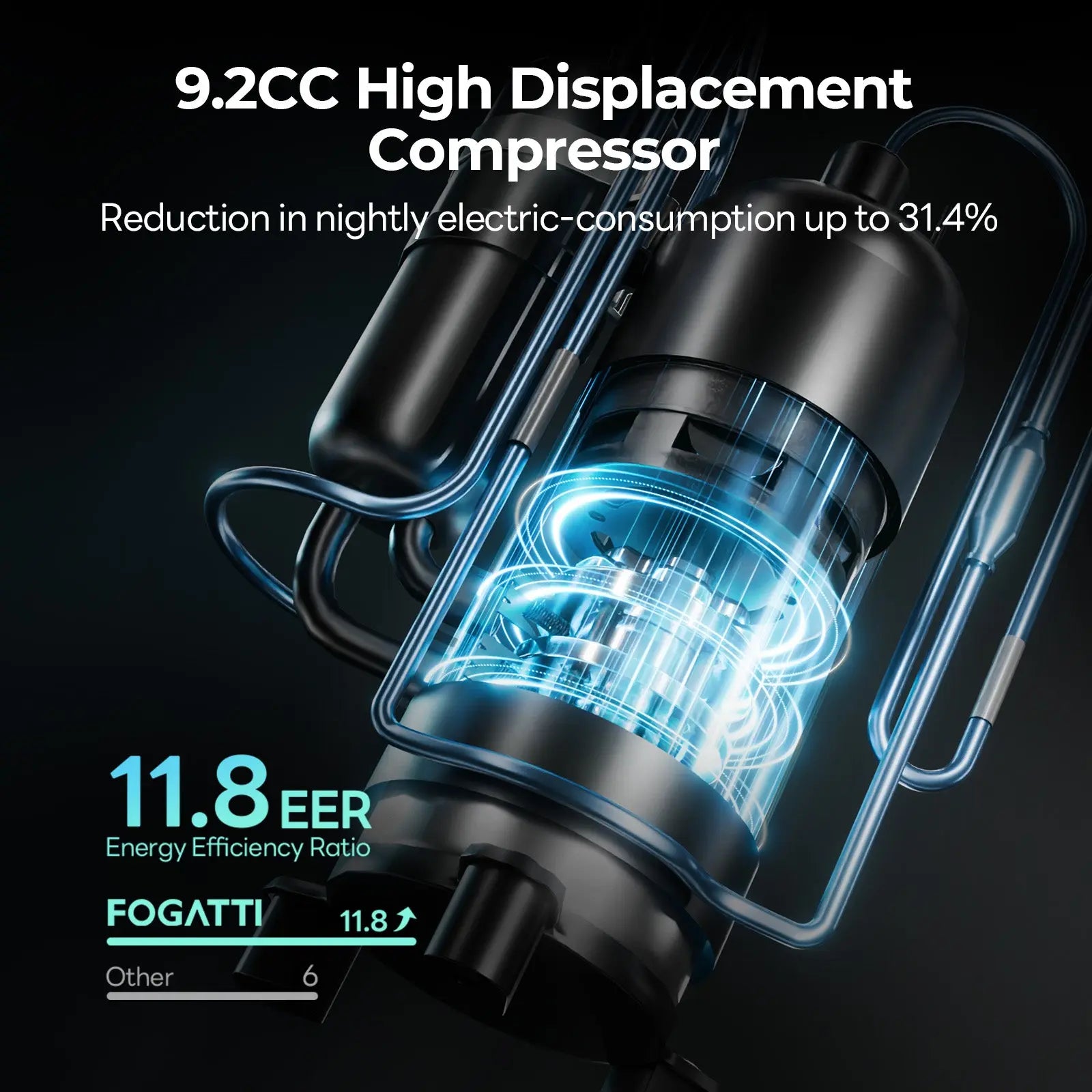

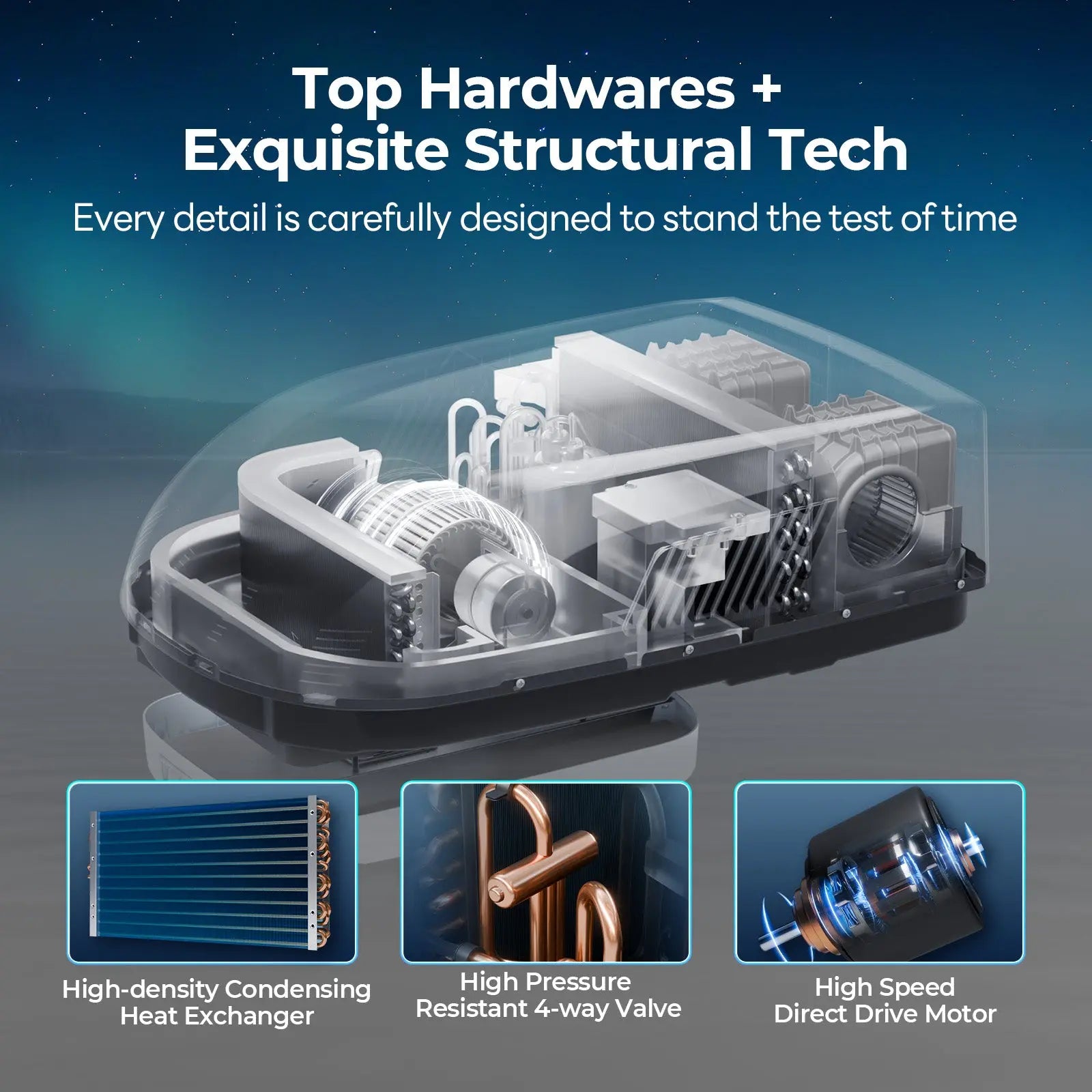

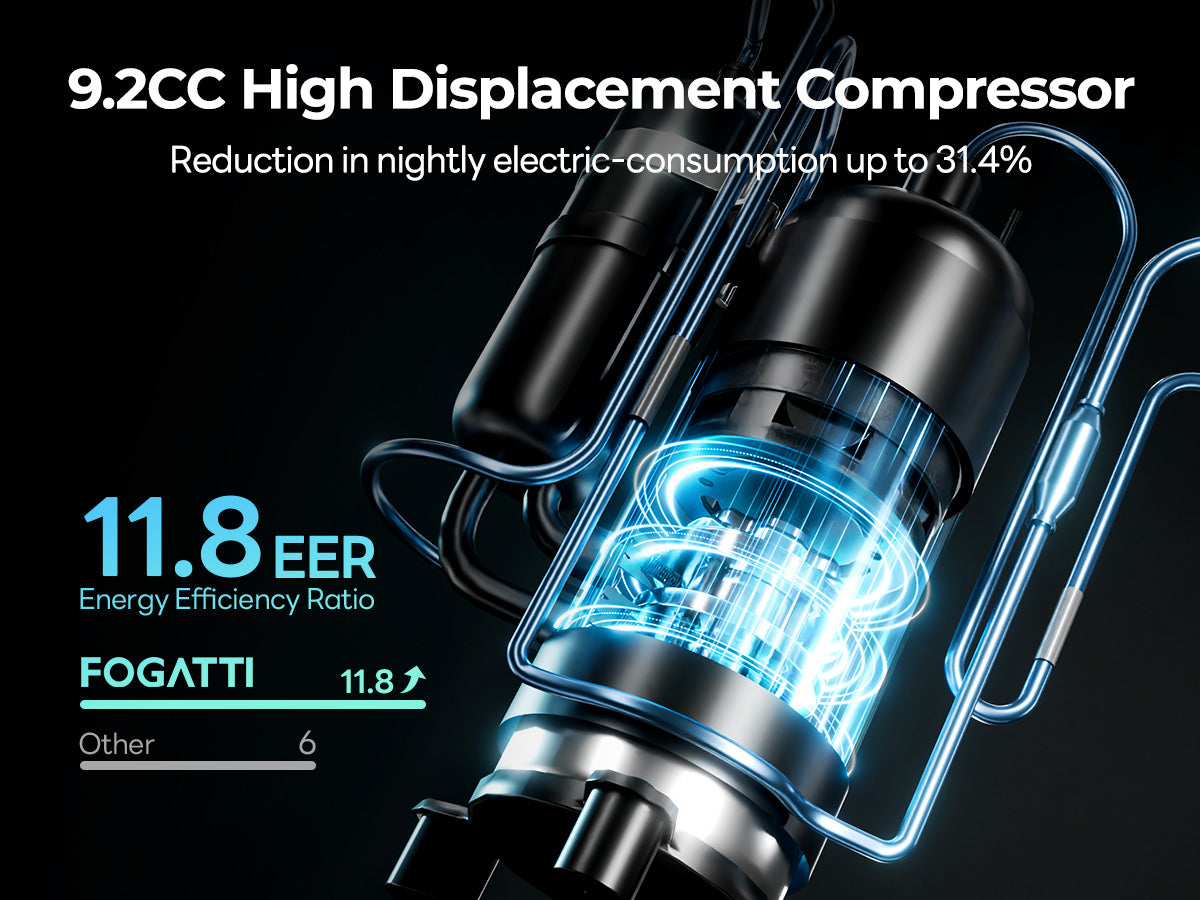

The compressor, separate airflow motors and control options are designed around the parts of rooftop climate control you feel every day.
FASTER RECOVERY
Recover the cabin after a hot drive
The 16K platform adds useful cooling capacity when the RV roof and interior have absorbed hours of summer heat.

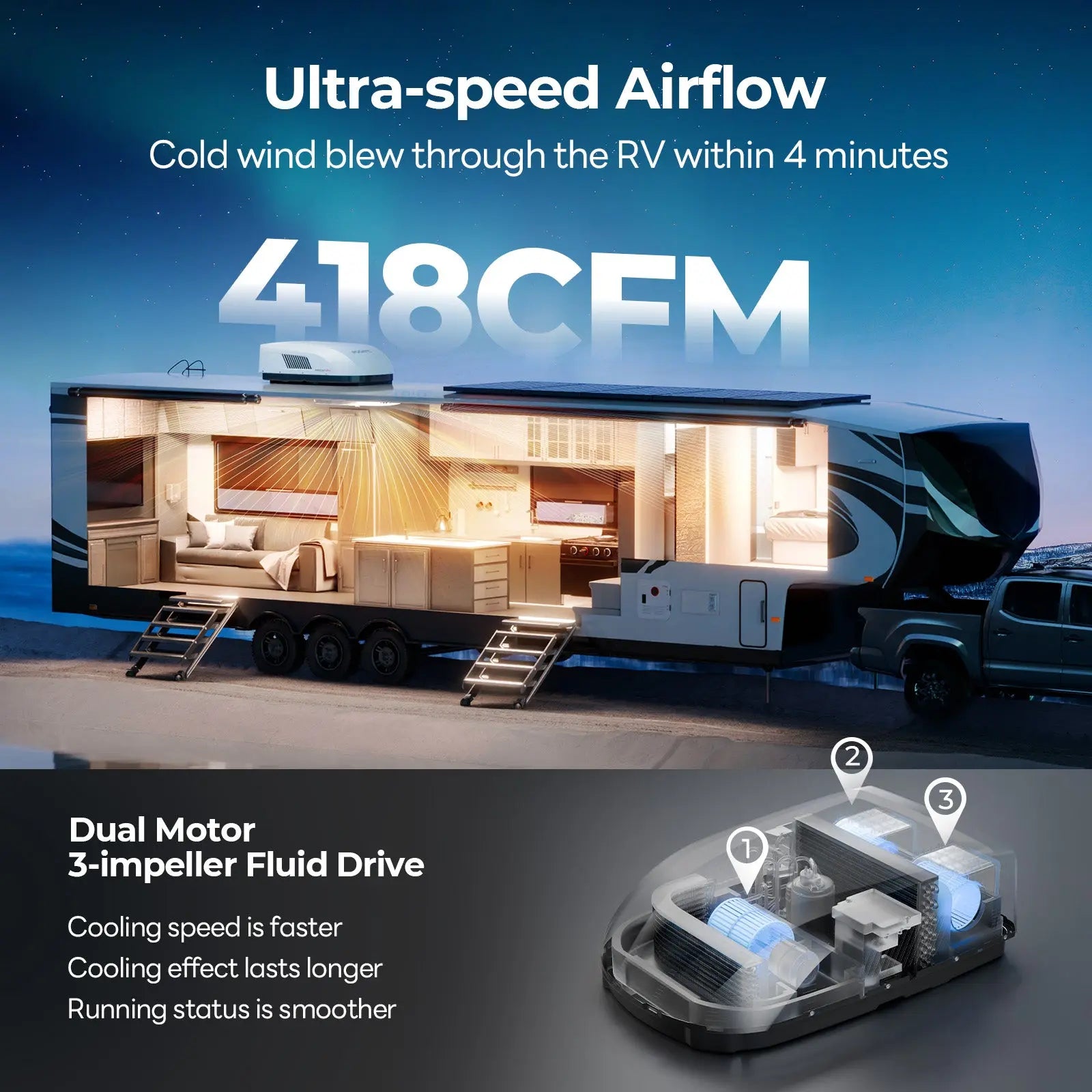

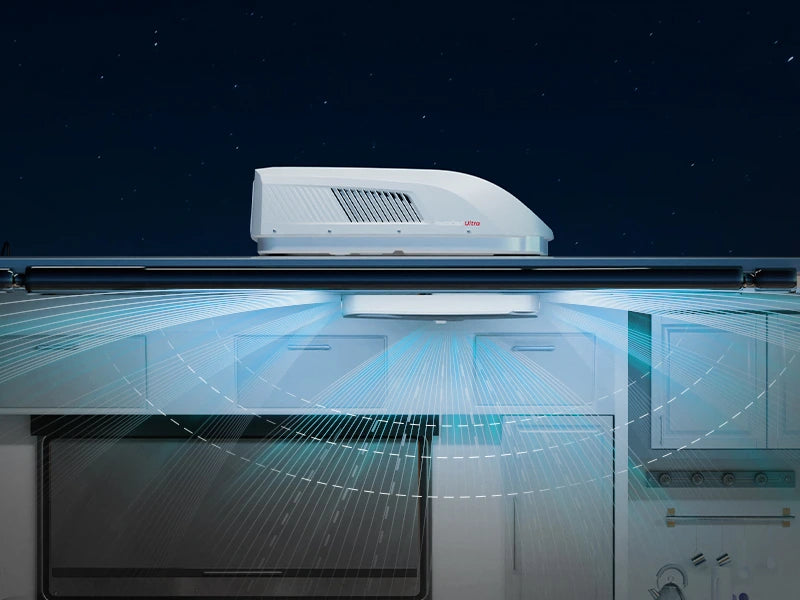

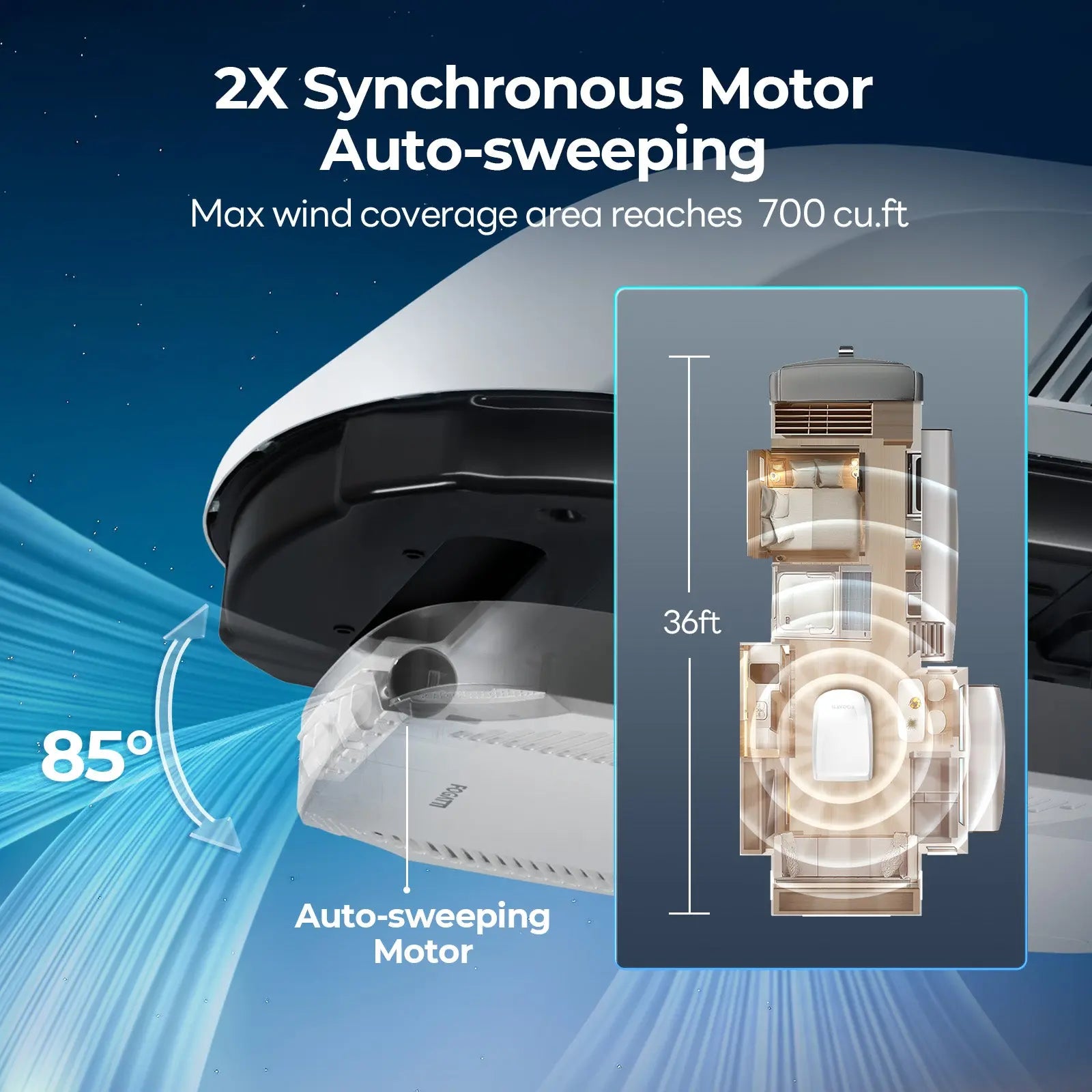

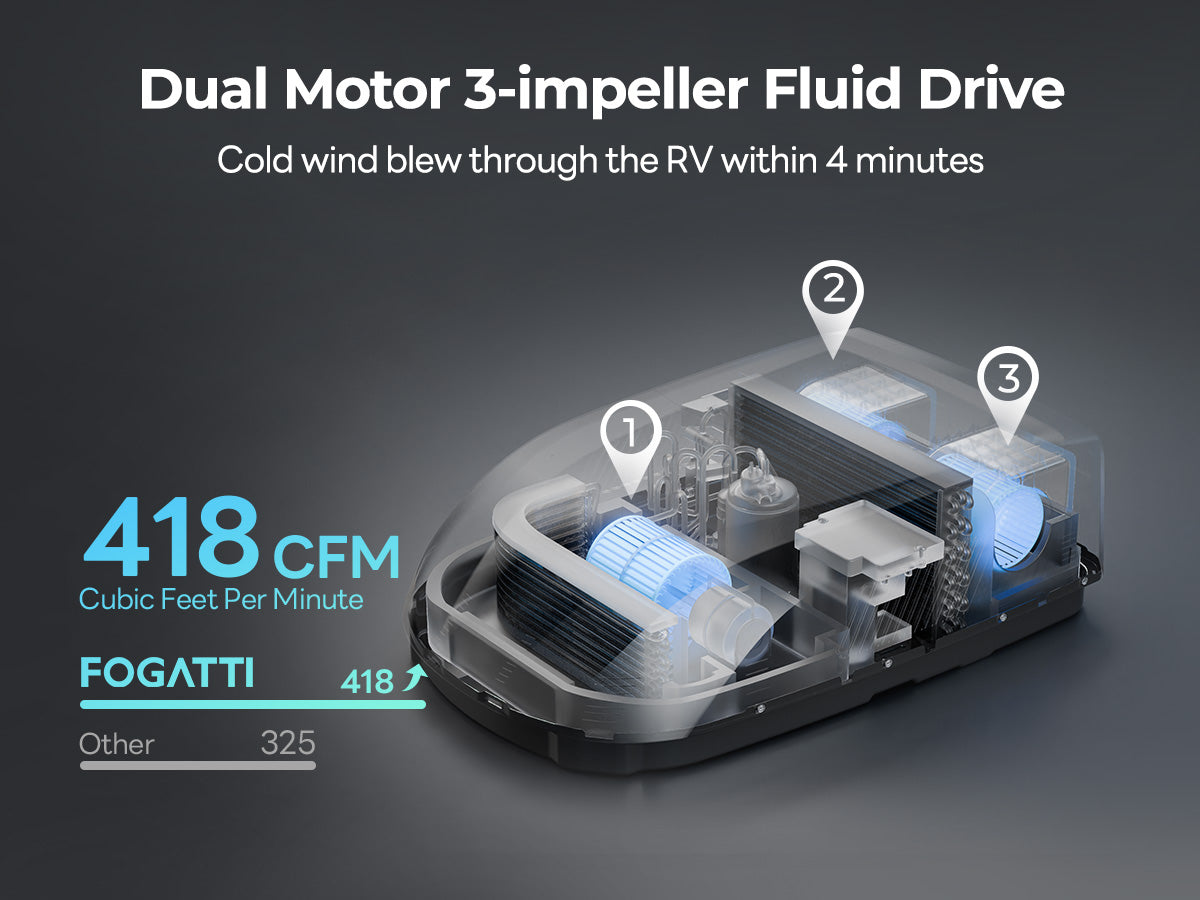

418 CFM AIRFLOW
Move conditioned air beyond the ceiling
Three impellers help deliver cooled or heated air into the occupied cabin instead of concentrating it around the ADB.
QUIETER OPERATION
Protect sleep with a quieter low mode
Actual sound depends on the RV and installation, but low mode is designed for overnight and maintenance cooling.
FLEXIBLE CONTROL
Control comfort from four interfaces
Change temperature, mode and timing without relying on a single control point.
WHO SHOULD CHOOSE ULTRA?
Choose Ultra for quiet non-ducted comfort
Ultra is the best fit for owners who want cooling, useful heat-pump warmth and a lower overnight sound target.
A strong fit for non-ducted RVs
The included ceiling system delivers air directly from the ADB rather than through existing ducts.
Useful for summer and shoulder seasons
The heat pump adds warmth in mild cold, while a furnace remains the right tool for freezing weather.
Choose Pro or Pro Max for a different priority
Pro adds maximum cooling-only output; Pro Max adds 18K cooling, 16K heat and ducted compatibility.

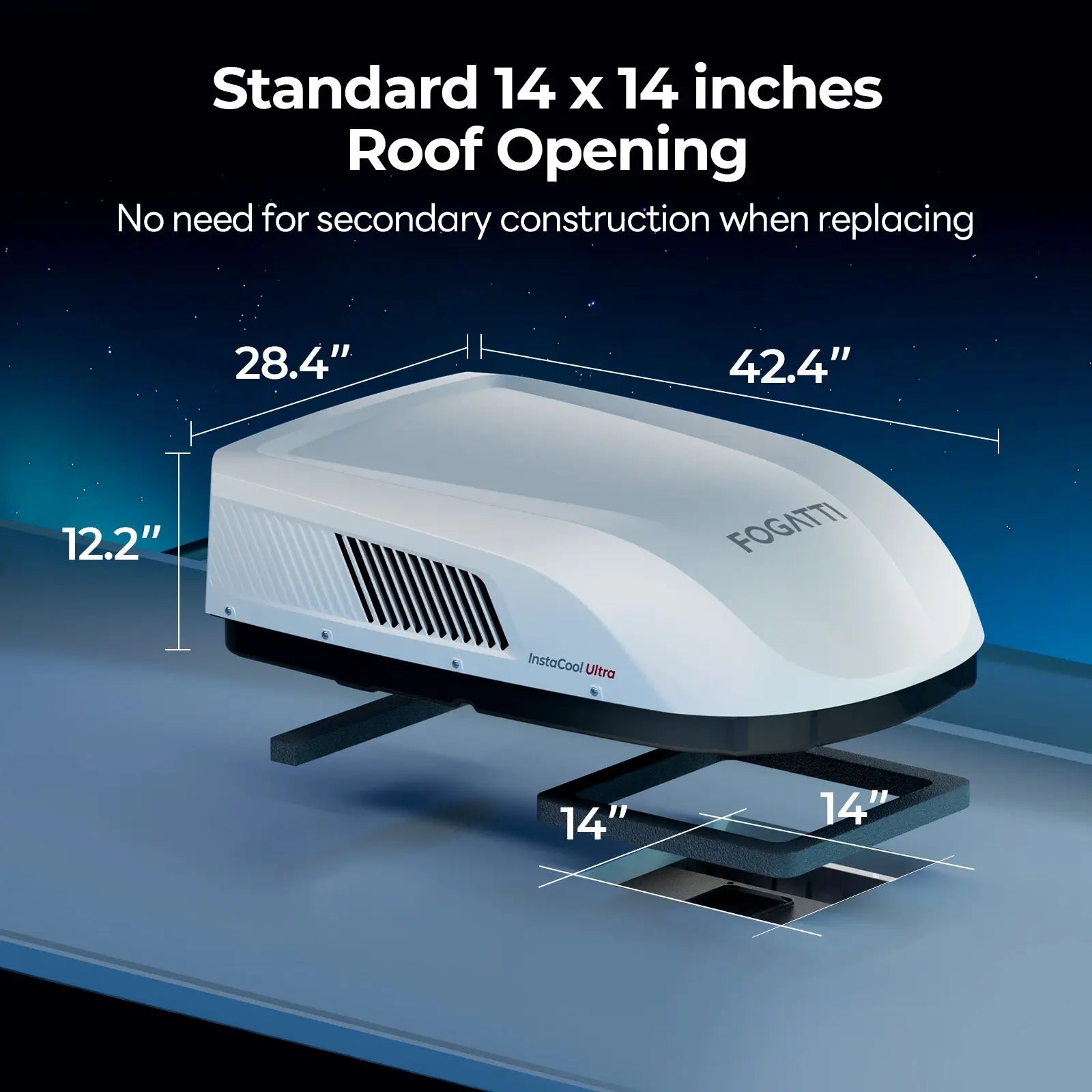

Confirm a non-ducted rooftop fit
Measure the full roof footprint and confirm the ceiling assembly before installation day.
INSTALLATION CHECK

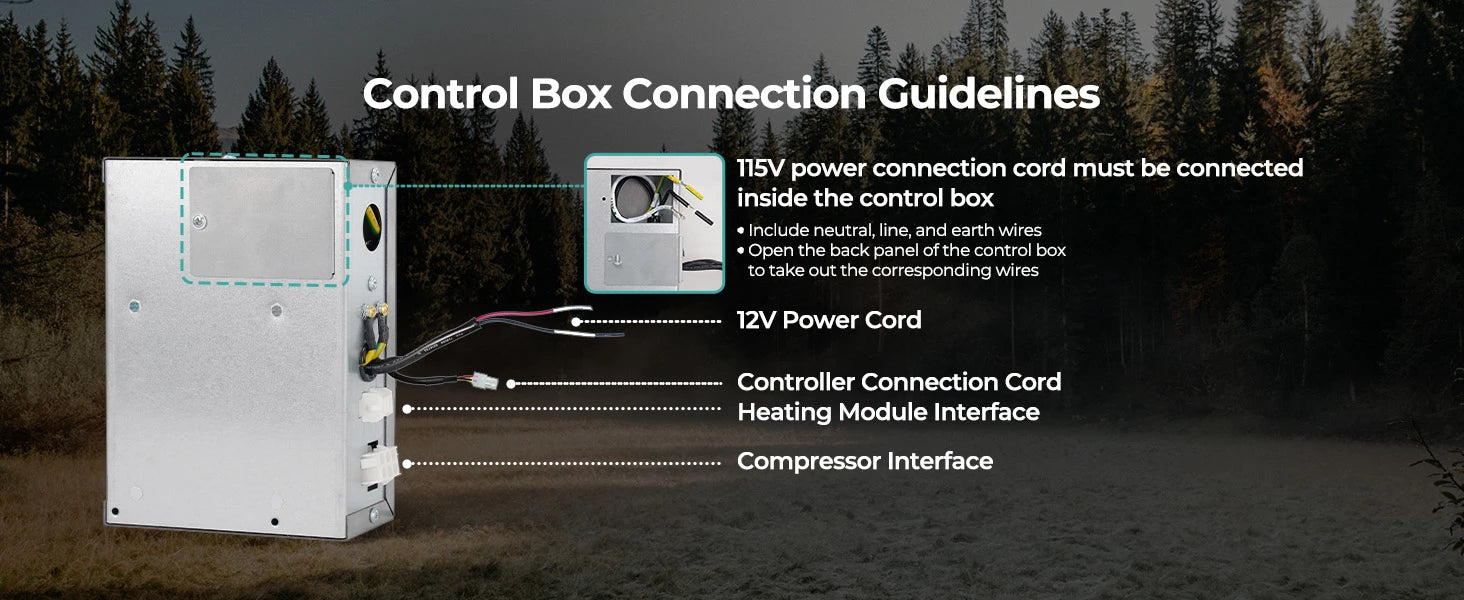

Confirm the opening, roof space and 115V circuit.
The standard cutout is only the first measurement. Check nearby vents, antennas and solar equipment as well.

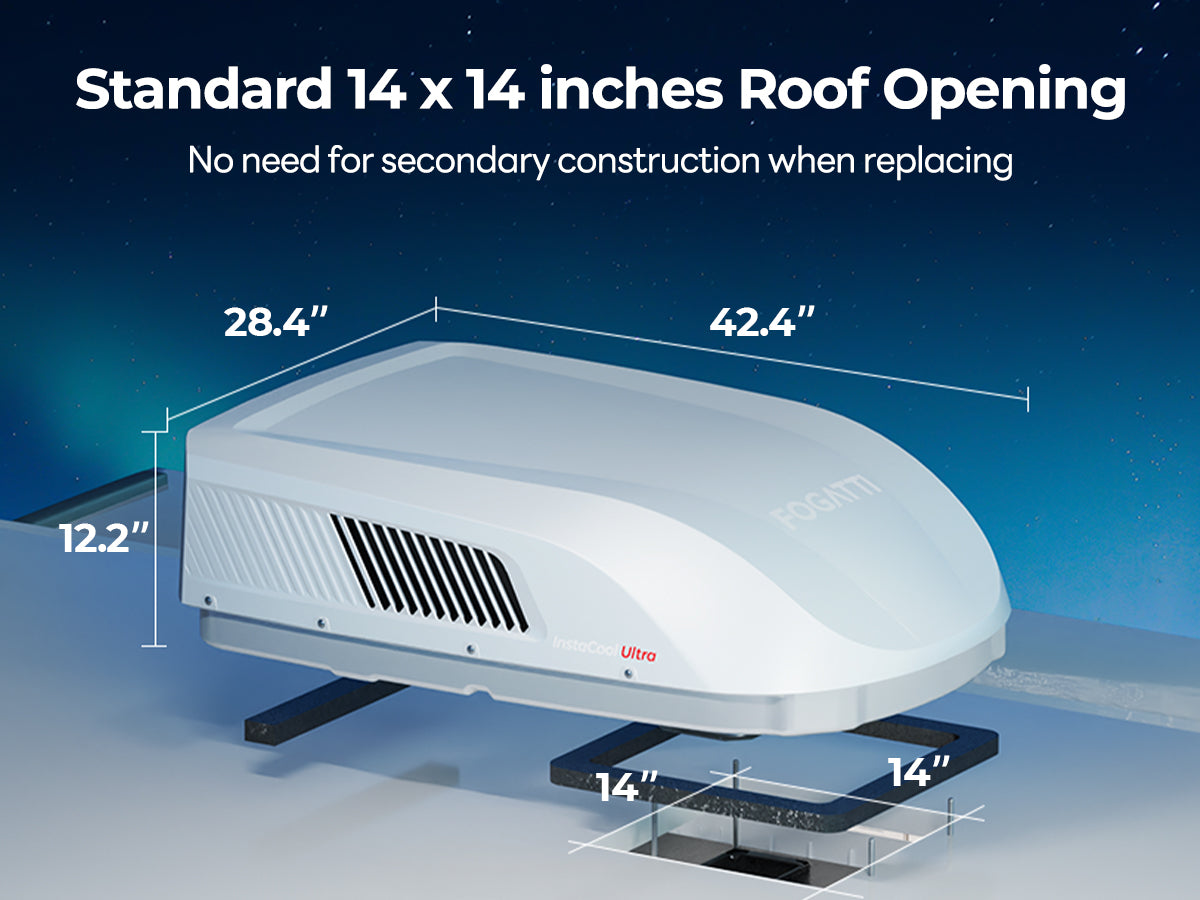

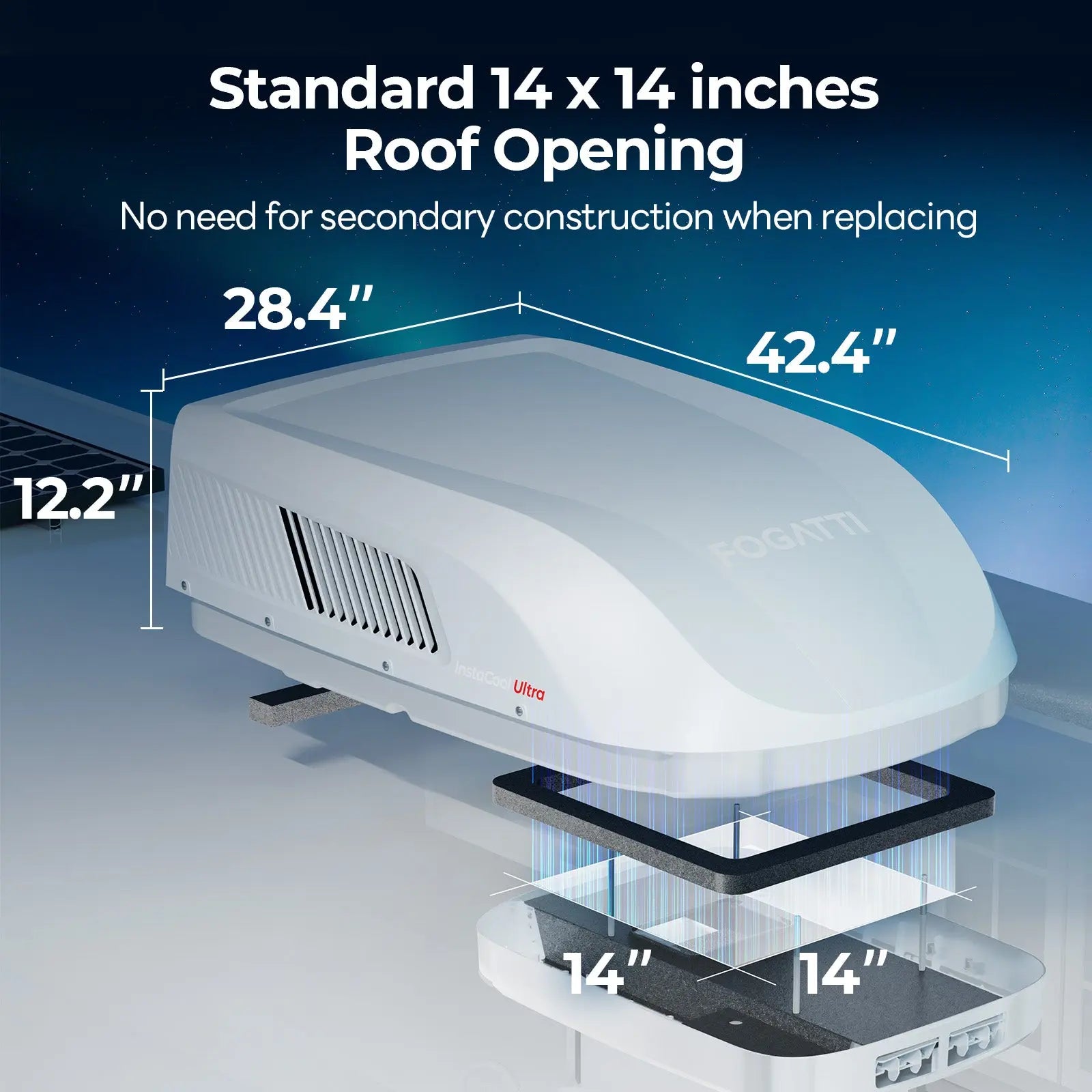

- Roof opening
- 14.25 × 14.25 in
- Roof thickness
- 1.2–5.0 in
- Rooftop size
- 42.4 × 28.4 × 12.2 in
- Ceiling layout
- Non-ducted ADB
- Rated input
- 1,270W / 11A
Ultra does not replace a ducted ceiling system. Choose a ducted-compatible model when the RV distributes air through ceiling ducts.
Choose by sound, output and ceiling layout
The best model depends on what the RV needs most after installation—not on BTU alone.

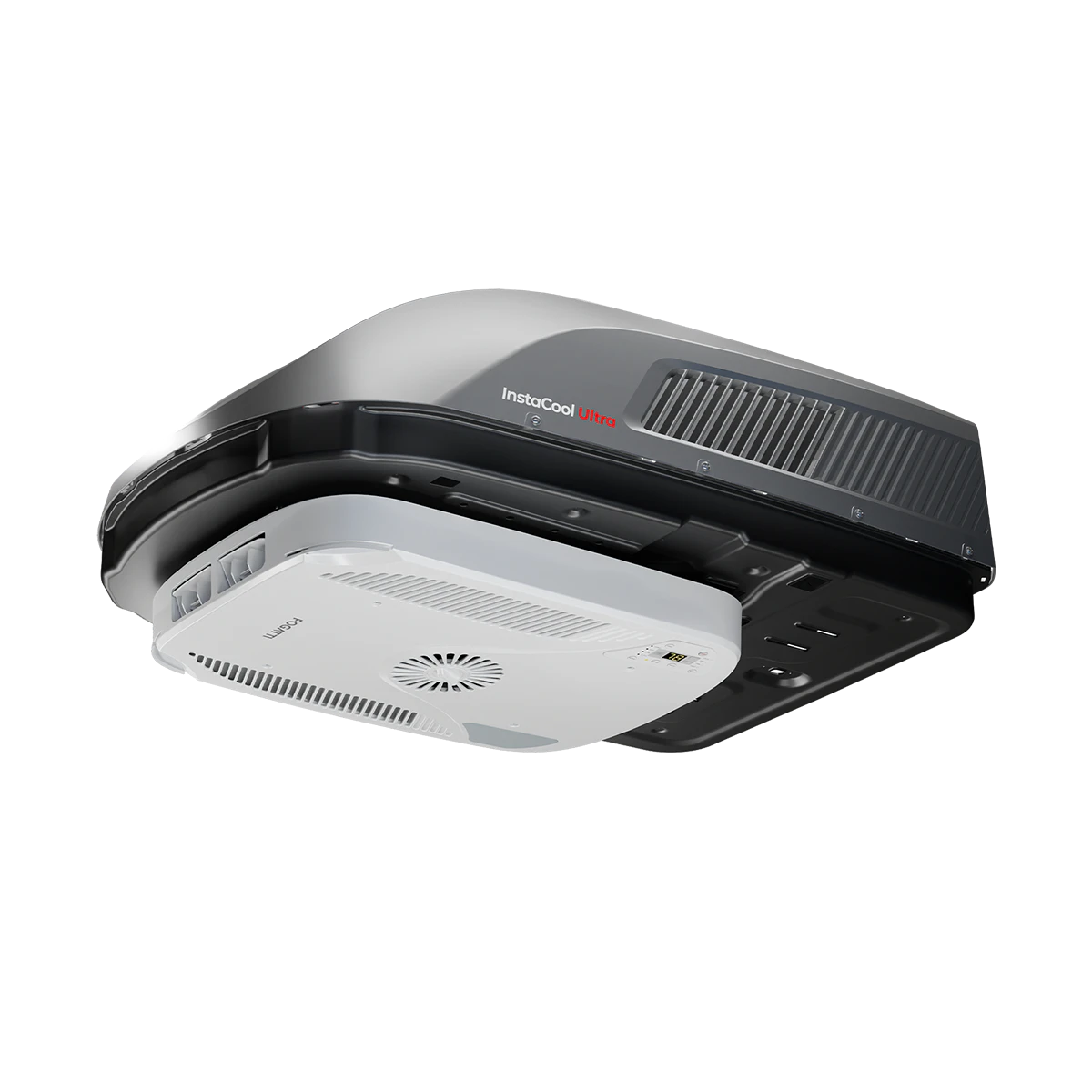

InstaCool Ultra
For non-ducted RVs where quiet nights and mild-weather warmth matter.
- Cooling
- 16K BTU
- Heating
- 12.5K heat pump
- Low mode
- Below 43 dB

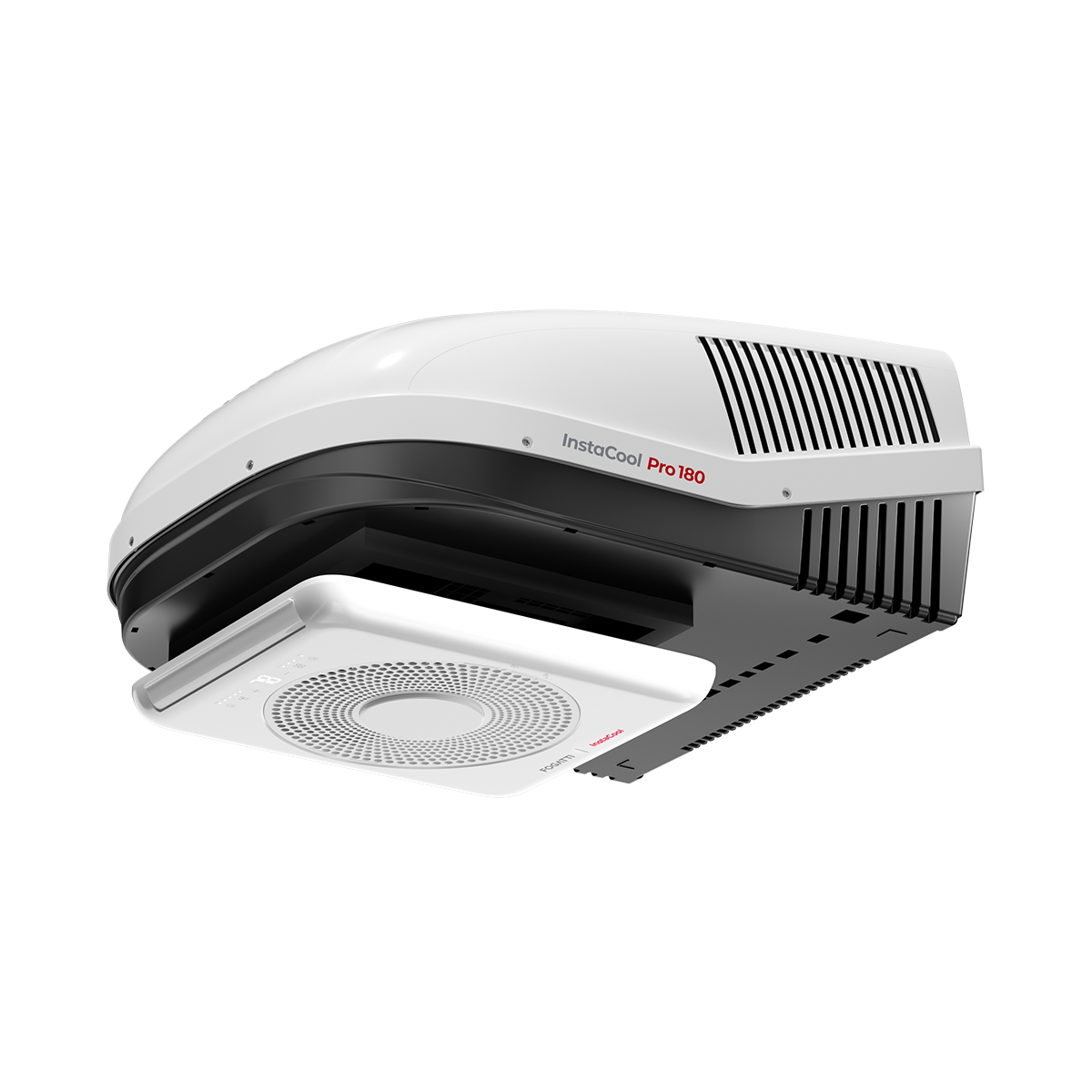

InstaCool Pro 18K
For hotter summer travel when rooftop heating is not needed.
- Cooling
- 18K BTU
- Heating
- None
- Ceiling
- Ducted / non-ducted

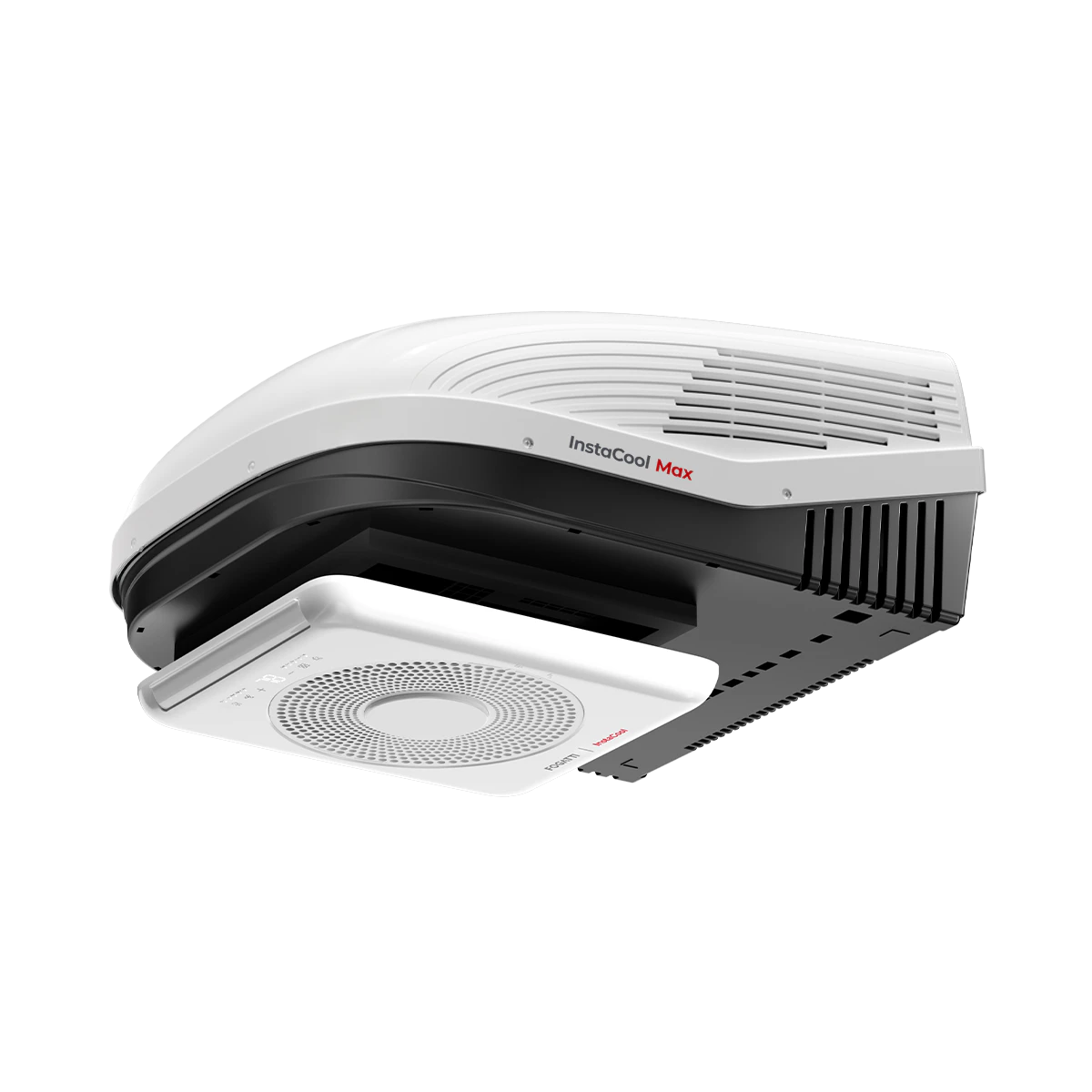

InstaCool Pro Max
For larger rigs needing 18K cooling, 16K heat and flexible installation.
- Cooling
- 18K BTU
- Heating
- 16K heat pump
- Ceiling
- Ducted / non-ducted
Review installation and power requirements
These videos show the work and system planning behind a rooftop AC upgrade, not just the finished product.
▶18K PLATFORM TEST
See how an 18K rooftop system is tested
A detailed look at measured cooling behavior and operating performance.
▶ROOFTOP INSTALLATION
See what a replacement installation involves
Roof preparation, lifting, sealing, ceiling work and startup checks.
▶POWER PLANNING
Understand inverter and battery requirements
Startup load, continuous draw and cooling away from full hookups.
Confirm fit and heating expectations
These are the questions that most often decide whether Ultra is the right model.
Will Ultra replace a ducted RV air conditioner?
No. This configuration uses a non-ducted ADB. Choose a ducted-compatible model for an RV with ceiling ducts.
Does the heat pump replace a propane furnace?
No. It is intended for mild-weather heating. Keep a properly sized furnace for freezing conditions.
What size RV is it intended for?
Fogatti positions Ultra for RVs up to approximately 36 ft and about 600 sq. ft.; insulation and climate still affect performance.
Can it run from an inverter?
Yes only when the inverter, battery bank, wiring and charging system support compressor startup and continuous operation.
What should I measure before ordering?
Confirm the 14.25-inch opening, 1.2–5-inch roof thickness, full rooftop footprint and a non-ducted ceiling layout.
Ready for quieter all-season comfort?

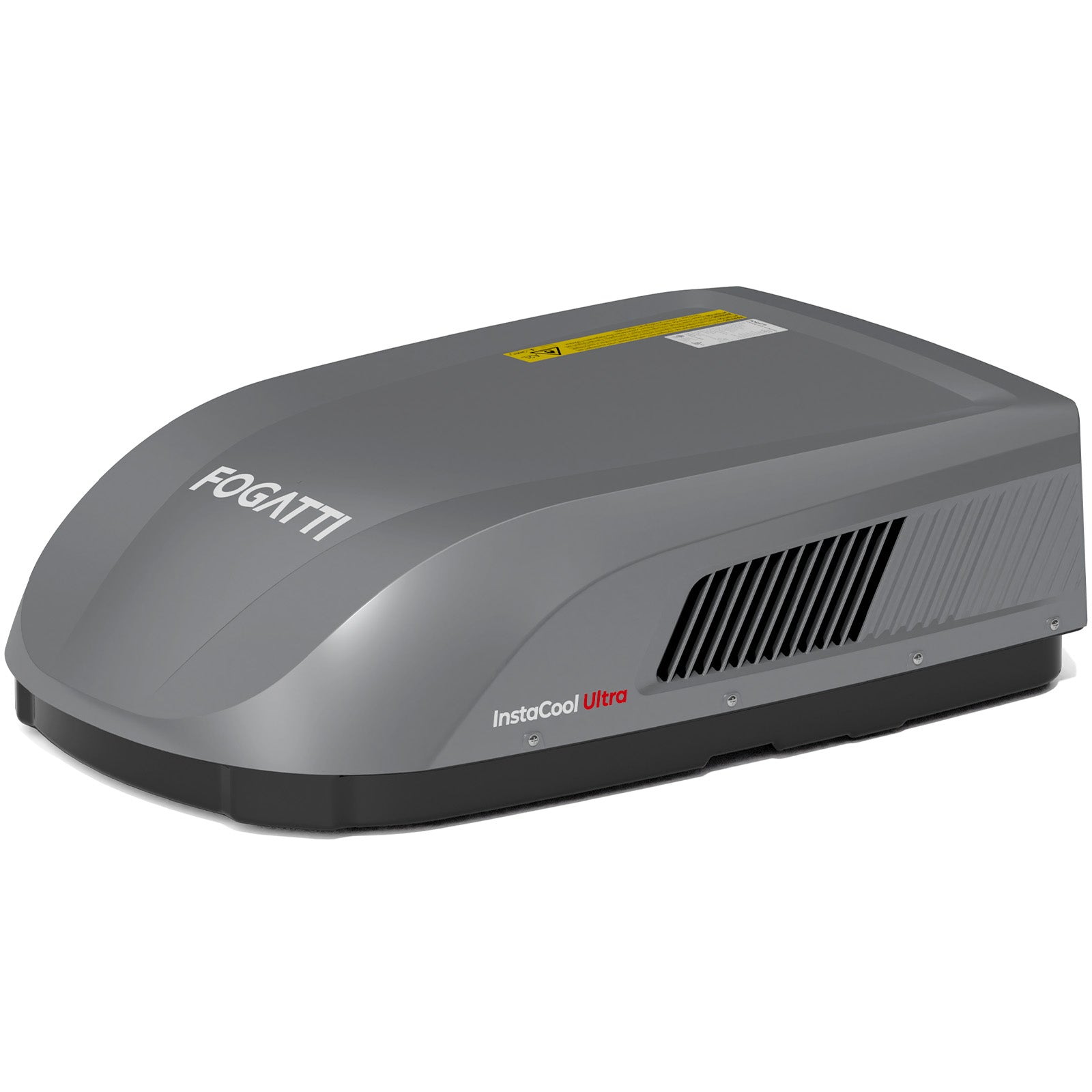

Choose Gray or White above, then review the installation manual with the roof measurements in front of you.
