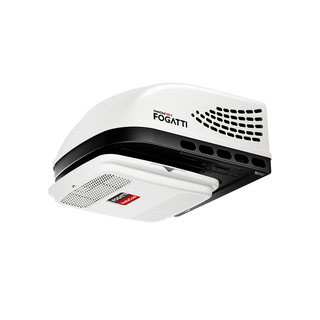

Fogatti InstaCool 13,500 BTU RV Rooftop Air Conditioner | Replaceable Ducted/Non-Ducted RV AC
Fogatti InstaCool 13,500 BTU RV Rooftop Air Conditioner | Replaceable Ducted/Non-Ducted RV AC 14 photos and videos
4.9 19 reviews
In stock Ships in 3–5 business days

INSTACOOL 135 II

13.5K Cooling-Only RV Air Conditioner

$899.99 $1,049.99 Save $150.00
Labor Day Price Protected
What price protection means

Buy now with confidence. If the same item is offered for less on FogattiLiving.com during our Labor Day promotion, contact us and we'll refund the eligible price difference. Terms and exclusions apply.

LIMITED-TIME SAVINGSSave more at checkoutCopy the code now, then enter it at checkout.Offer ends when the timer reaches zero.
Offer ends in
00Days : 00Hrs : 00Min : 00Sec
Summer50
Straightforward cooling for smaller RVs.

InstaCool 135 II delivers 13,500 BTU cooling in a rooftop system designed for common RV openings. It is a practical choice when you need efficient summer cooling without stepping up to a larger 15K or 18K platform.

View all features ↓
13,500 BTUCooling for smaller RV interiors
R32Modern refrigerant platform
14.25 inStandard rooftop opening
Ducted / non-ductedChoose the correct ceiling layout
INSTALLATION FIT

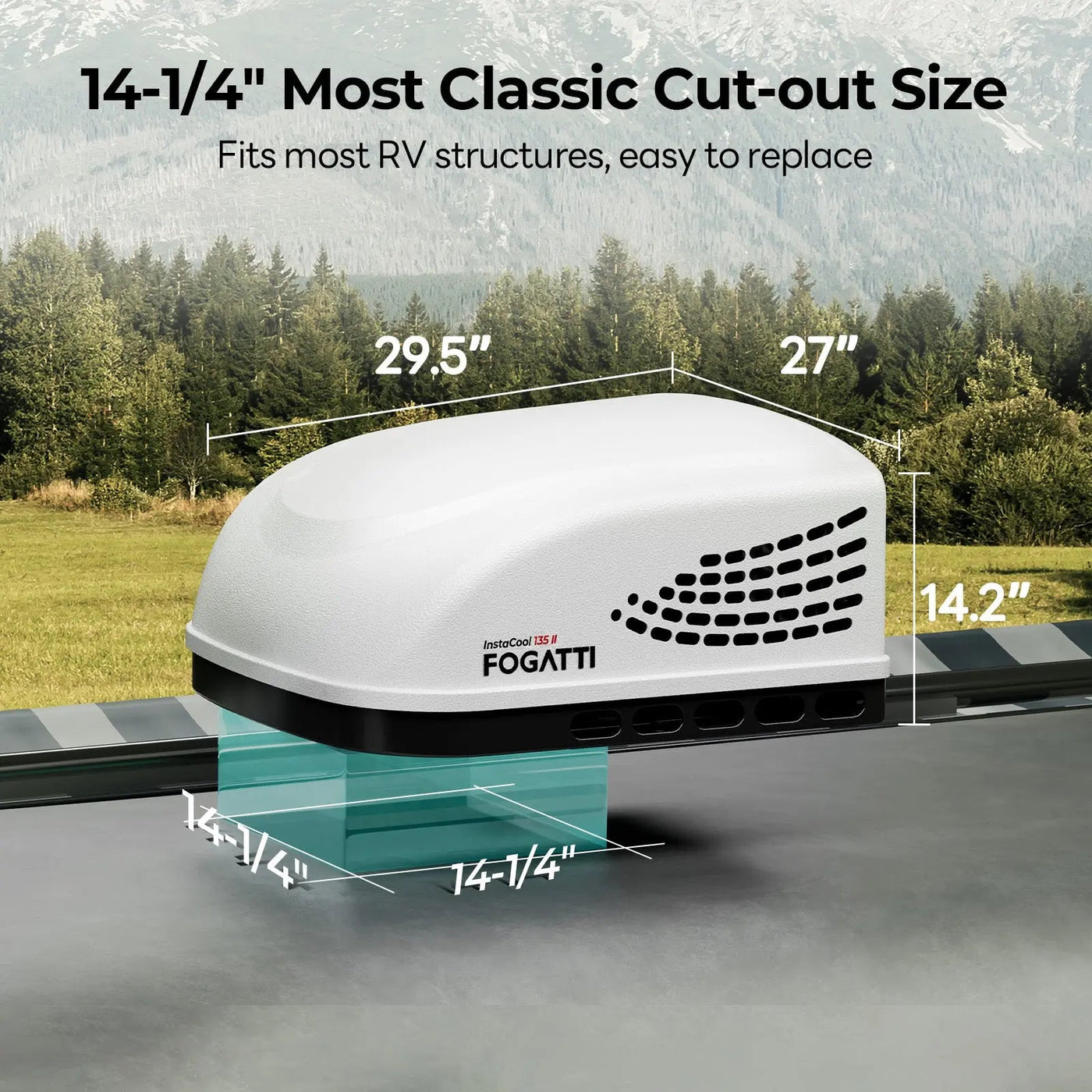

Fits a standard 14.25 × 14.25 in roof opening.

14.25 × 14.25 in opening · 1.5–5.0 in roof · Ducted or non-ducted

PDF GUIDE Installation manual Opening, roof depth, ceiling assembly, wiring and mounting requirements. Open manual
Color: White
Style: Non-Ducted
Checkout code
--:--:--
Secure checkout More options available at checkout
30-day returns
Free contiguous U.S. shipping
2-year warranty
Choose your InstaCool
How to choose
Choose by fit and real travel needs

Confirm installation fit first, then compare the output and comfort features that match how you travel.

Check these first
  • Confirm roof or window opening, thickness and structural fit.
  • Verify power supply and ducted or non-ducted installation.
  • Choose cooling-only, PTC assist or heat-pump capability for the trips you take.
Current model
Fogatti InstaCool 13.5K
13.5K13.5K coolingEfficient cooling for smaller RV interiors
Fogatti InstaCool 15K
15K15K coolingMore cooling and airflow for larger cabins
Fogatti InstaCool Pro 18K
Pro 18K18K coolingHighest cooling-only output in the range
Fit and installation
Roof opening
14.25 × 14.25 in
Roof thickness
1.5–5.0 in
Ceiling layouts
Ducted or non-ducted
Power supply
115V AC / 12V DC / 60Hz
Cooling type
Cooling only
Refrigerant
R32
Main Unit Size
29.5 × 27.6 × 14.2 in
Main Unit Weight
69.2 lbs / 31.4 kg
ADB Size
22.8 × 21.1 × 2.7 in (Non-Ducted)
17.1 × 17.1 × 1.8 in (Ducted)
ADB Weight
11.5 lbs / 5.21 kg (Non-Ducted)
8.4 lbs / 3.8 kg (Ducted)

A 14.25 × 14.25-inch opening, compatible roof thickness and the matching ducted or non-ducted ceiling kit support installation.

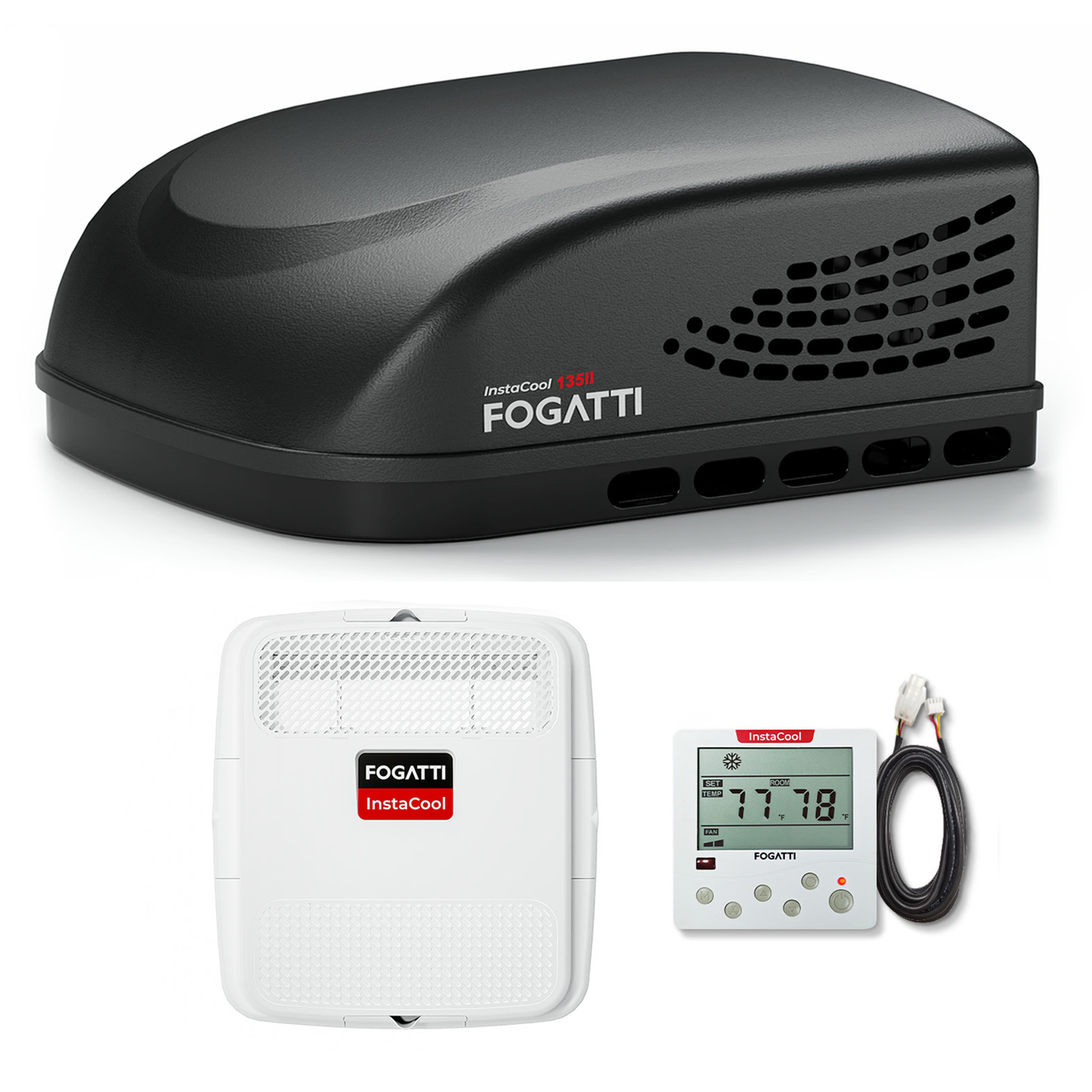

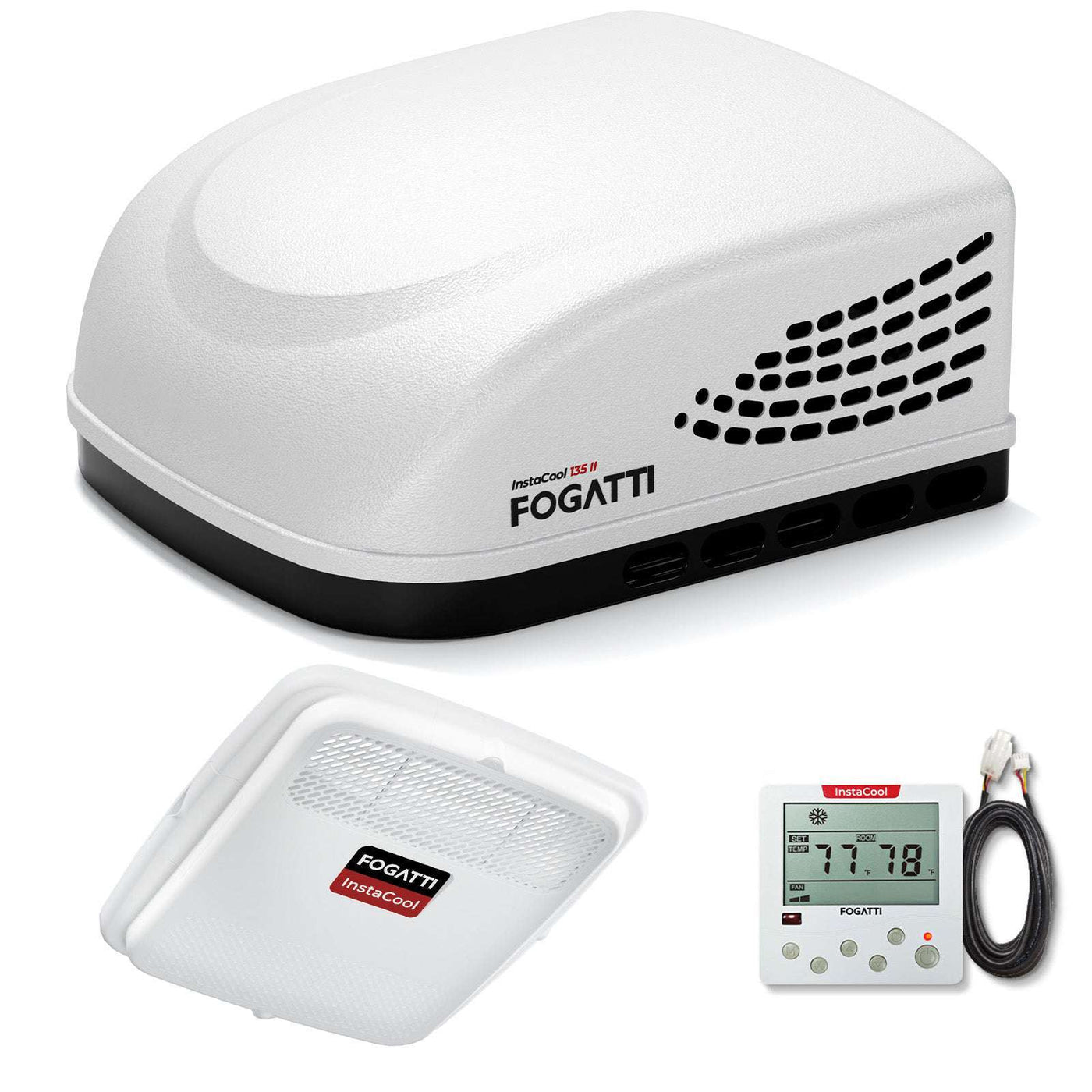

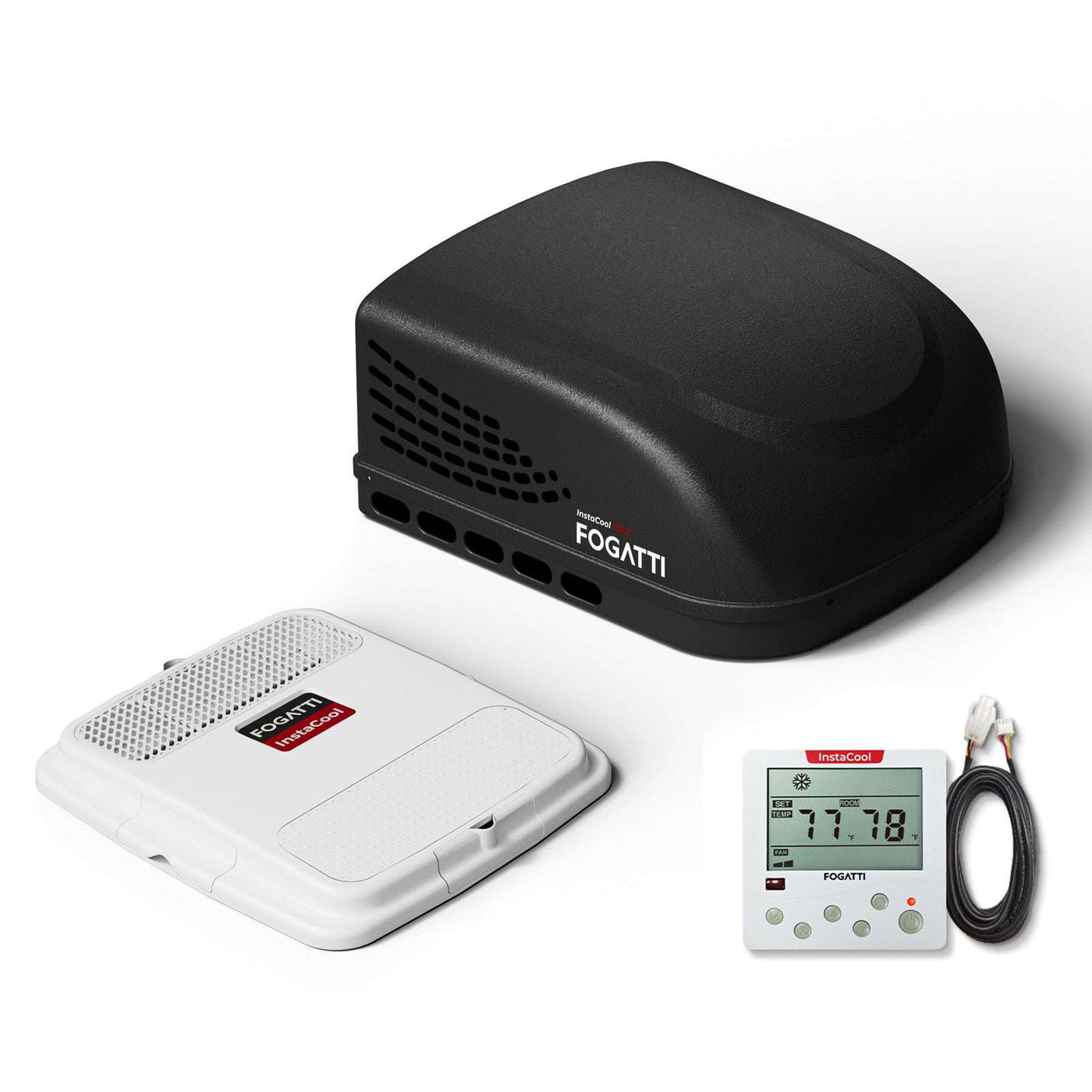

What’s included

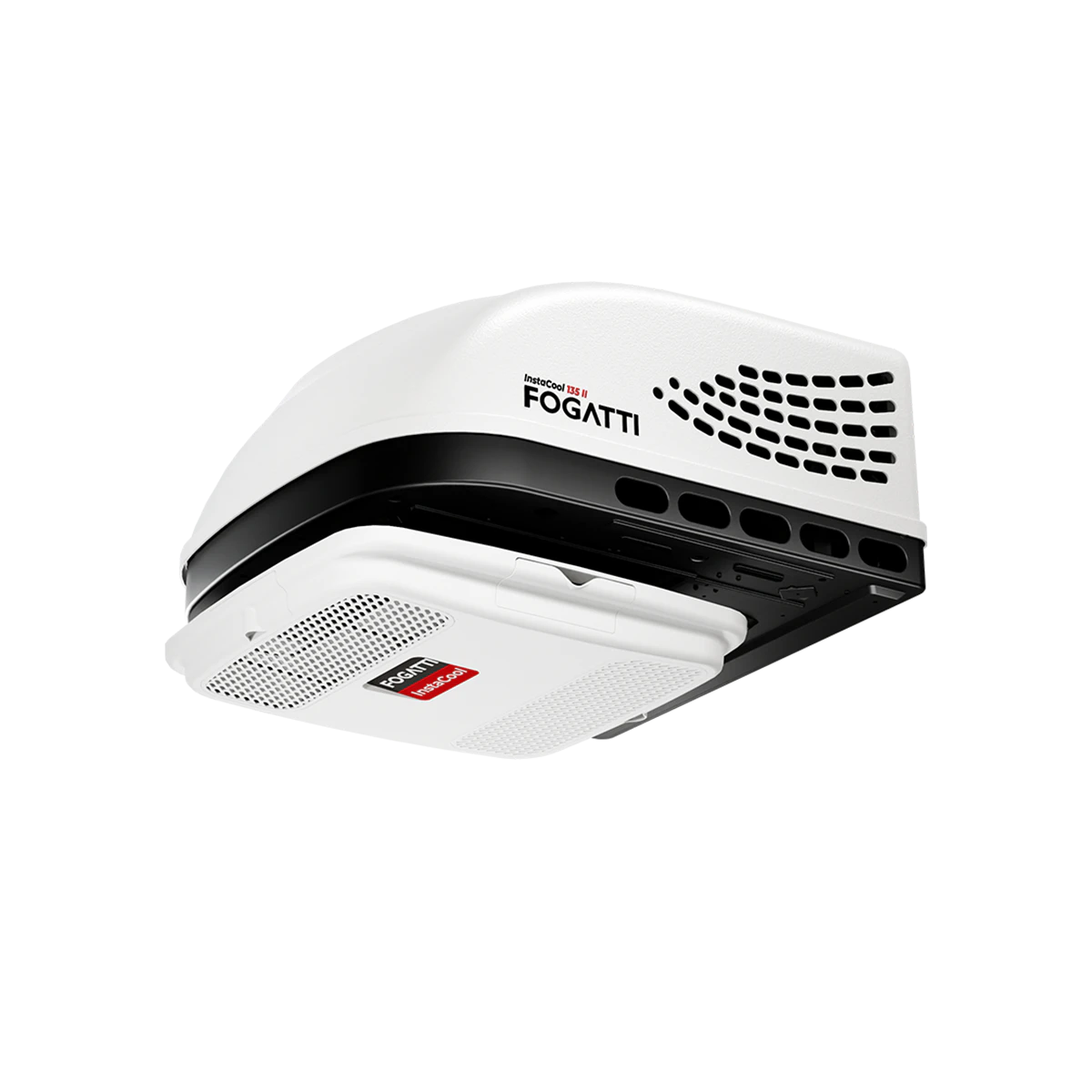

  • ✓Rooftop ACInstaCool 135 II cooling unit
  • ✓Ceiling assemblySelected ducted or non-ducted configuration
  • ✓ControllerControl hardware for the selected kit
  • ✓Mounting partsInstallation hardware and sealing components
  • ✓DocumentationInstallation and operation manual

Package contents follow the selected configuration and variant.

Specifications
Cooling capacity
13,500 BTU/h
System type
Cooling only
Refrigerant
R32
Roof opening
14.25 × 14.25 in
Roof thickness
1.5–5.0 in
Power supply
115V AC / 12V DC / 60Hz
Quick answers

Is 13,500 BTU enough for my RV?
It is generally better suited to smaller RV interiors; insulation, sun exposure and climate also affect performance.

Does it provide heat?
This model is purpose-built for cooling and pairs with the RV furnace for cold-weather heat.

Can it work with a ducted ceiling?
Yes when the matching ducted configuration is selected.

Read all FAQs ↓

Complete the RV comfort system

Add hot water or propane heat selected for the RV opening, utilities and duct system.

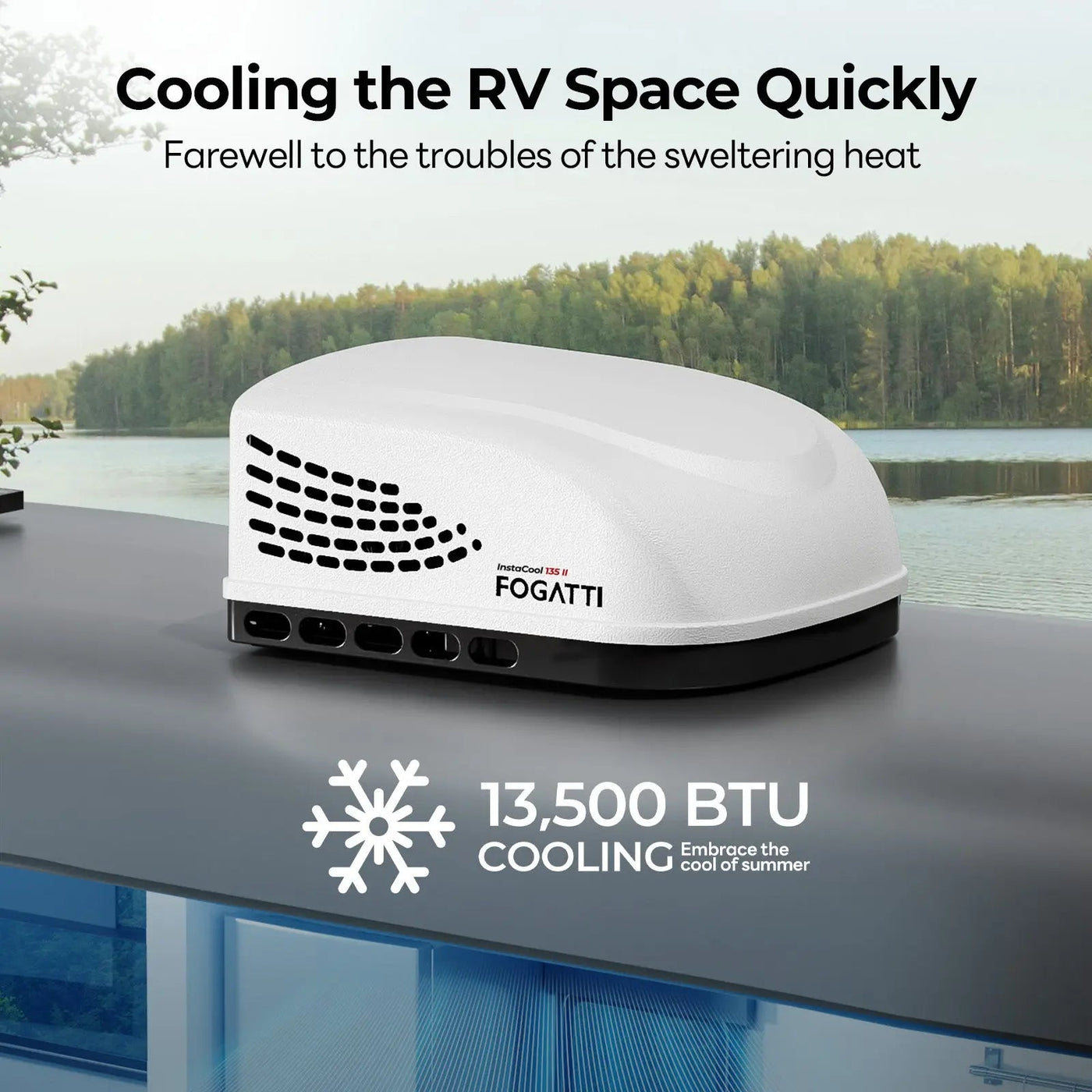

RIGHT-SIZED ROOFTOP COOLING

Cooling sized for smaller RV interiors

The 13.5K model prioritizes appropriate output, common roof fit and a simpler cooling-only system.

13.5K cooling for compact RVs
RIGHT-SIZED OUTPUT

13.5K cooling for compact RVs

A sensible match for smaller trailers and cabins where an 18K platform adds cost without solving a real need.

Choose ducted or non-ducted airflow
FLEXIBLE CEILING FIT

Choose ducted or non-ducted airflow

Select the ceiling kit that matches the RV instead of adapting the wrong air-distribution box.

Keep winter heat with the furnace
COOLING-ONLY VALUE

Keep winter heat with the furnace

This model stays focused on summer cooling for owners who already use propane heat in cold weather.

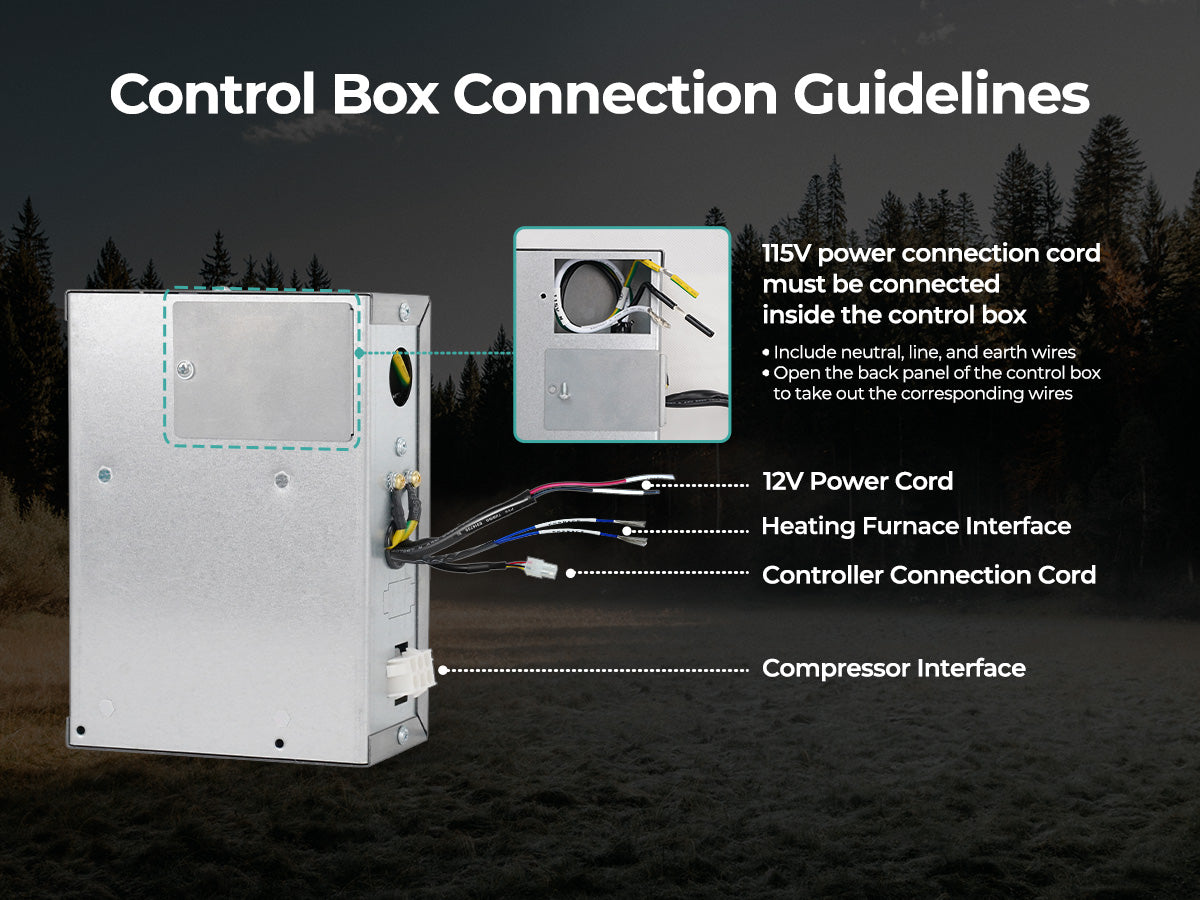

INSTALLATION FIT

Roof and ceiling-system fit

A standard opening, clear rooftop footprint and matching ceiling kit support a clean installation.

Roof and ceiling-system fit
FIT AT A GLANCE

Opening, roof depth and ceiling kit

Match every measurement and select ducted or non-ducted before the old unit is removed.

Cooling
13,500 BTU/h
Roof opening
14.25 × 14.25 in
Roof thickness
1.5–5.0 in
Ceiling layout
Ducted or non-ducted
Power
115V AC / 12V DC / 60Hz
System
Cooling only

Cooling capacity should also reflect RV length, insulation, sun exposure and the output of the unit being replaced.

CHOOSE THE RIGHT MODEL

Choose output from the actual heat load

Match BTU output to the cabin, climate and electrical system.

COMPACT RV PICK
InstaCool 135 II

InstaCool 135 II

For smaller RV interiors and cooling-only travel.

Cooling
13.5K BTU
Heat
None
Ceiling
Ducted / non-ducted
$899.99 Current model
InstaCool 150 II

InstaCool 150 II

For common mid-size RV cooling loads.

Cooling
15K BTU
Heat
None
Airflow
Up to 470 CFM

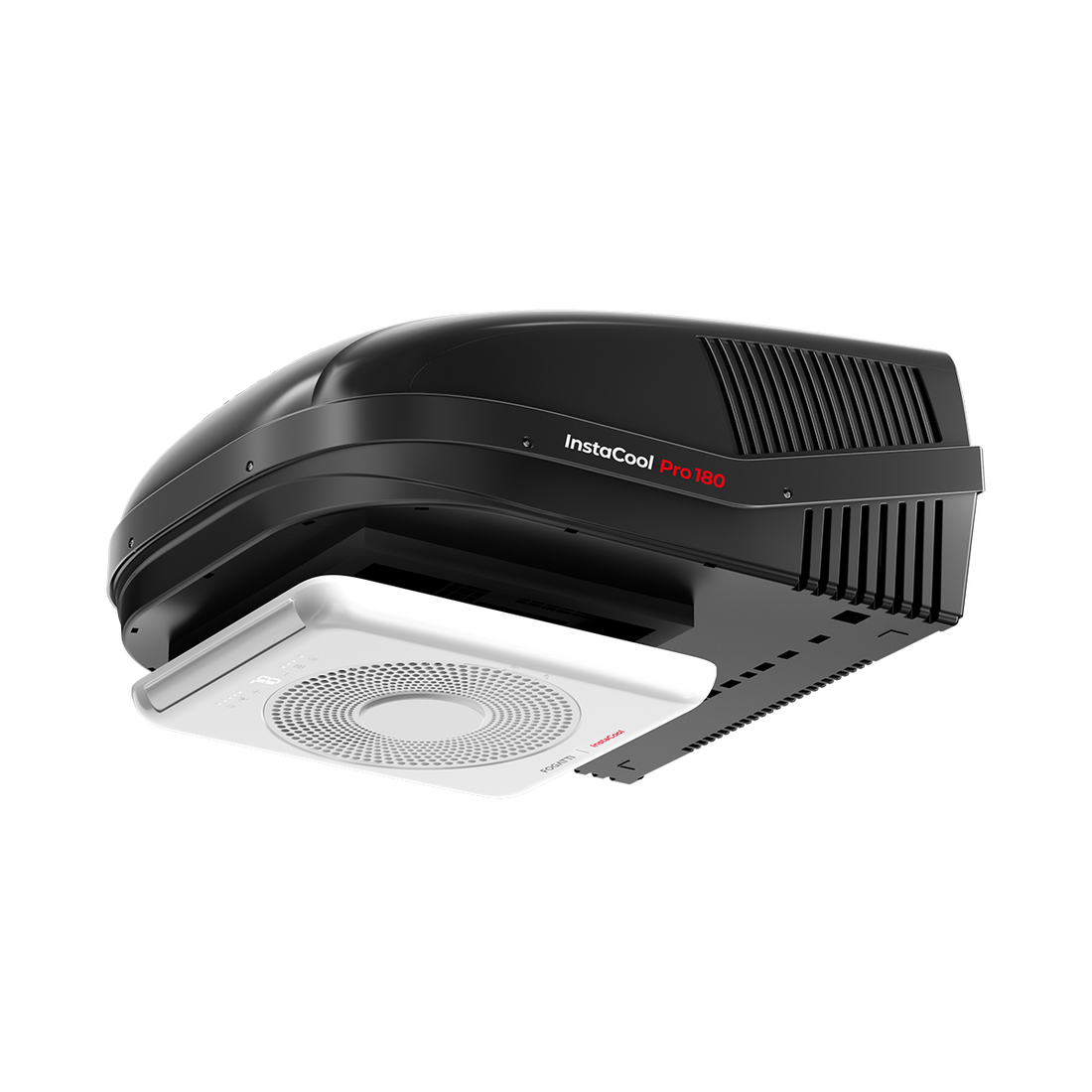

InstaCool Pro 18K

InstaCool Pro 18K

For larger cabins and demanding summer heat.

Cooling
18K BTU
Heat
None
Fan speeds
4
QUICK ANSWERS

Quick answers about 13.5K cooling, ceiling fit and power

These answers address the decisions most likely to affect fit and comfort.

Is 13,500 BTU enough for my RV?

It is generally better suited to smaller RV interiors. Insulation, sun exposure, climate and the output of the old unit also matter.

Does this model provide heat?

It is purpose-built for cooling and pairs with a properly sized RV furnace for cold-weather travel.

Can it work with a ducted ceiling?

Yes, when the ducted configuration and compatible ceiling assembly are selected.

Will it fit a standard RV roof opening?

It uses a 14.25 × 14.25-inch opening, but roof thickness, clearance and ceiling layout still need confirmation.
