Fogatti InstaCool 110P Ⅱ RV Rooftop Air Conditioner | Heat&Cool | Replaceable Non-Ducted RV AC
As the top 3 brands RV A.C., Fogatti RV A.C. effortlessly fits most market-standard 14'' x 14'' RV openings, seamlessly replacing units from various RV A.C. brands, offering a universal solution with replaceable non-ducted options

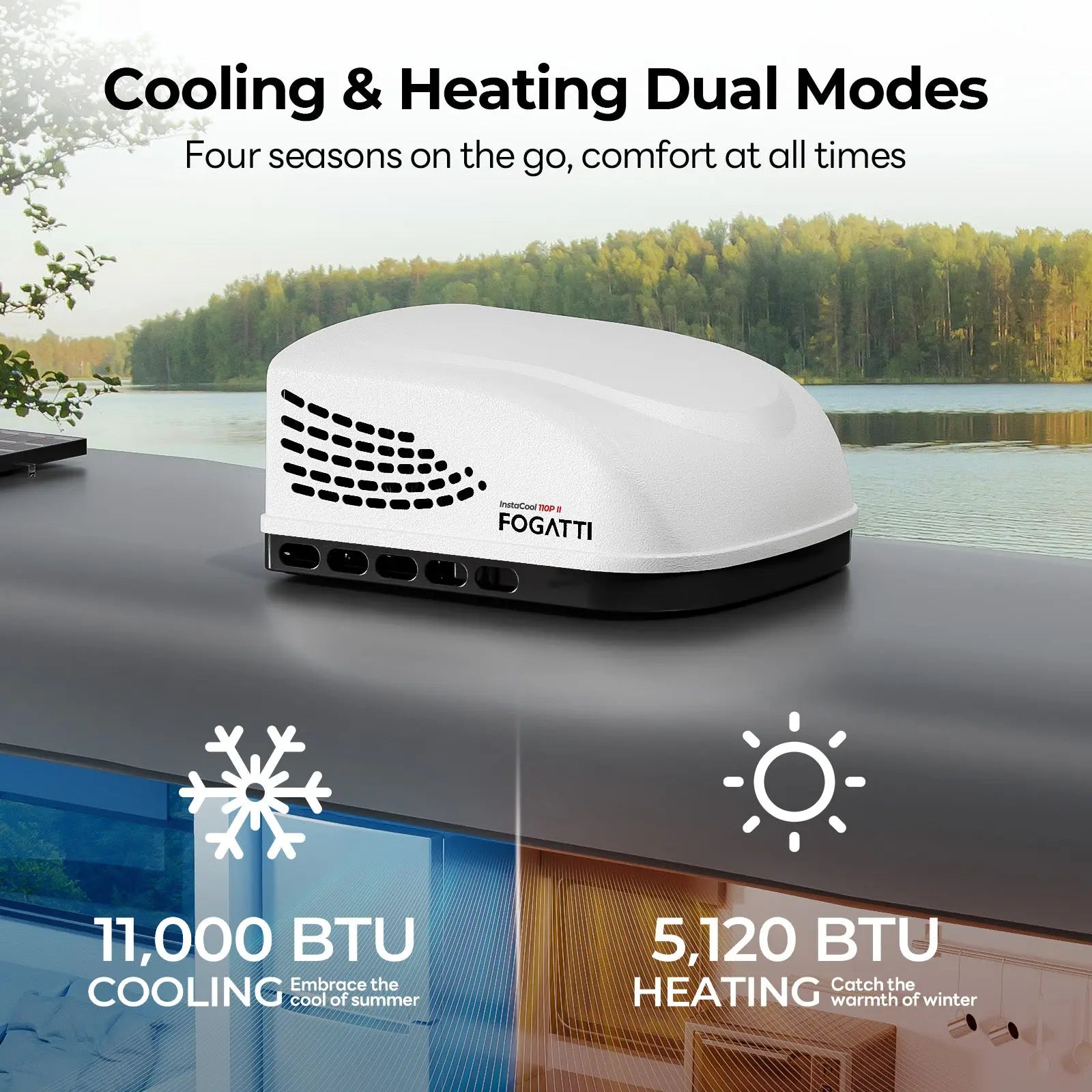

- 11,000 BTU cool & 5,120 BTU heat
- Instant cool
- Rapid Heating
- Refreshingly air
- Consistent comfort
- Gently audible
- Durable & reliable design
- Replaceable Non-Ducted RV AC
- Light weight 65.3 lbs
- Ultra-low energy consumption
- Extremely effective dehumidification
- 11,000 BTU cools, temp range 61-87°F
- 325 CFM airflow for air renewal
- Barely noticeable 62dB noise level
- Remote control with cooling, dehumidifying, blowing, temperature, and speed settings
- Durable shroud to protect from UV light, debris, insects, critters, and weather
- AC 115V/60Hz/1Ph ensures reliable performance
- 15.5A lower amps, recommend 3.5KW generator
- Easy installation with a sleek 14" x 14" design
- Direct replacement for a 14" x 14" fan
1. Coleman:replacement video by Retro Revivals
- The Signature Series
- The Quiet Series
- The PowerSaver Series
- The Roughneck Series
- The Soft Start Series
- The Marine Mach AC
- Specialty Units
2. Dometic:replacement video by shidelrvs
- Penguin II series
- Brisk II series
- Blizzard NXT series
3. Recpro:
- RP-AC3800 Series
- RP-AC3501 Series
- RP-AC2801 Series
- RP-AC3400 Series
- RP-AC48V Series
4. Furrion:
- FACR13HESA-BL-AM
- FACR13HESA-PS-AM
Upon ensuring that the RV's opening dimensions are 14 in x 14 in, a seamless replacement with the Fogatti RV air conditioner is possible without any compromise to the integrity of the vehicle
Free Shipping, 3-5 Days FedEX / UPS Delivery from US Local Warehouse
Columbus Day Deal
Hurry up! Deal will End on
- 30-Day Free Return & Replacement
- 30-Day Free Return & Refund
- 24-Month Warranty
Description
Upgrade your RV's air conditioning experience with the FOGATTI RV Air Conditioner. Specifically designed for a variety of RV models, this RV air conditioner promises outstanding cooling performance. The straightforward installation process includes an adjustable RV air distribution box (ADB), a thermostat control kit, and detailed setup instructions.
Unmatched Cooling Efficiency:
Equipped with a professional-grade LG compressor, the FOGATTI Van Roof Air Conditioner efficiently delivers cool or warm air to the interior of your RV. Using R410A refrigerant and a robust 11,000 BTU dual shaft motor, this unit cools a 36" trailer in under 10 minutes, ensuring comfort even in the RV summer heat.
Integrated Heating Function:
The built-in 1500W heat strip in the FOGATTI RV Air Conditioner for Travel Trailer offers more than just cooling. It efficiently removes moisture on damp mornings and provides adequate heating during early winter trips.
Built to Last:

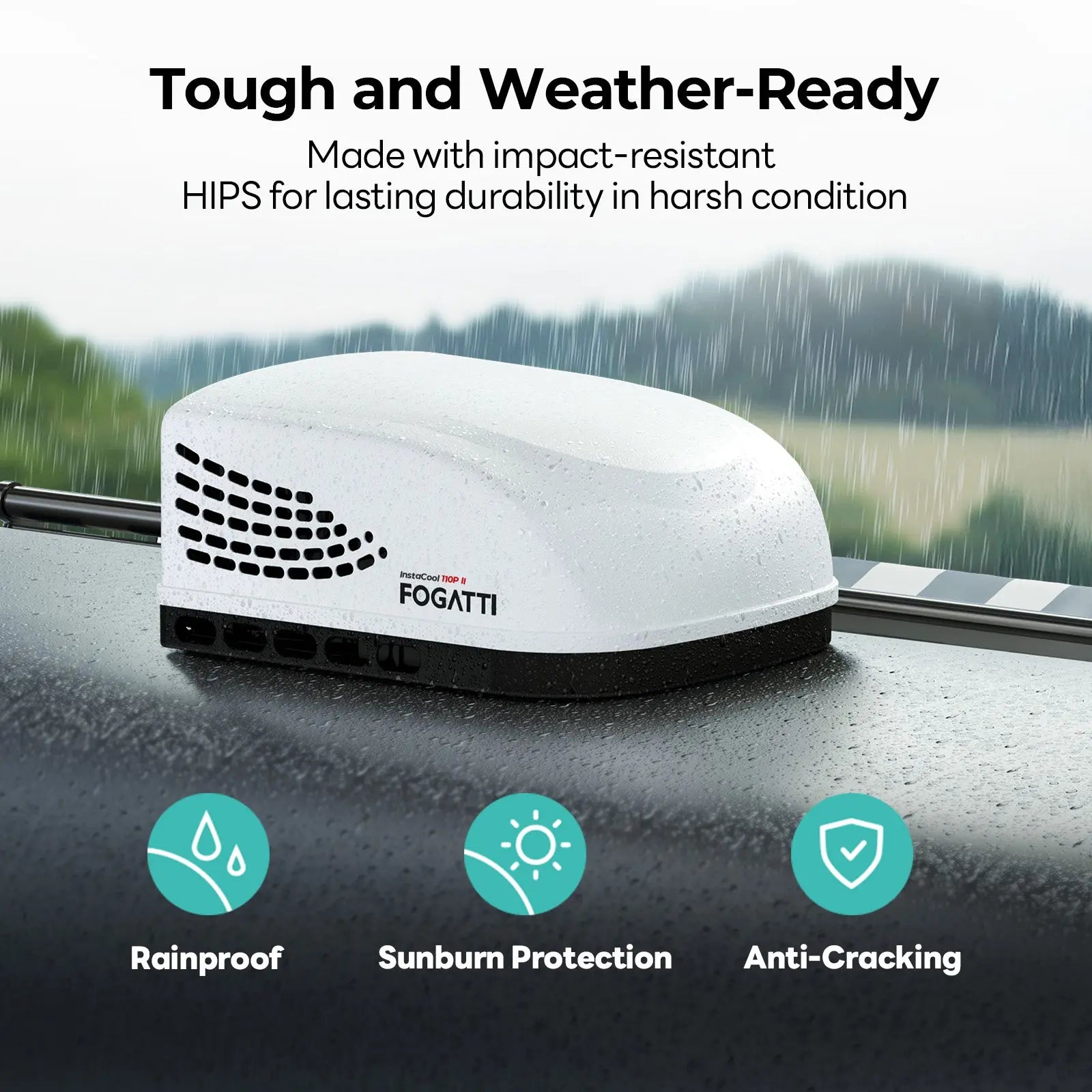

The FOGATTI Camper Top Air Conditioner features a durable ABS shell that resists deformation. Protected with UV-resistant materials, the casing stands up to prolonged exposure. Internally, the air duct is insulated with EPP foam, offering thermal protection and safeguarding against moisture and dust, catering to all RV camping needs.
Superior Air Distribution and Versatility:

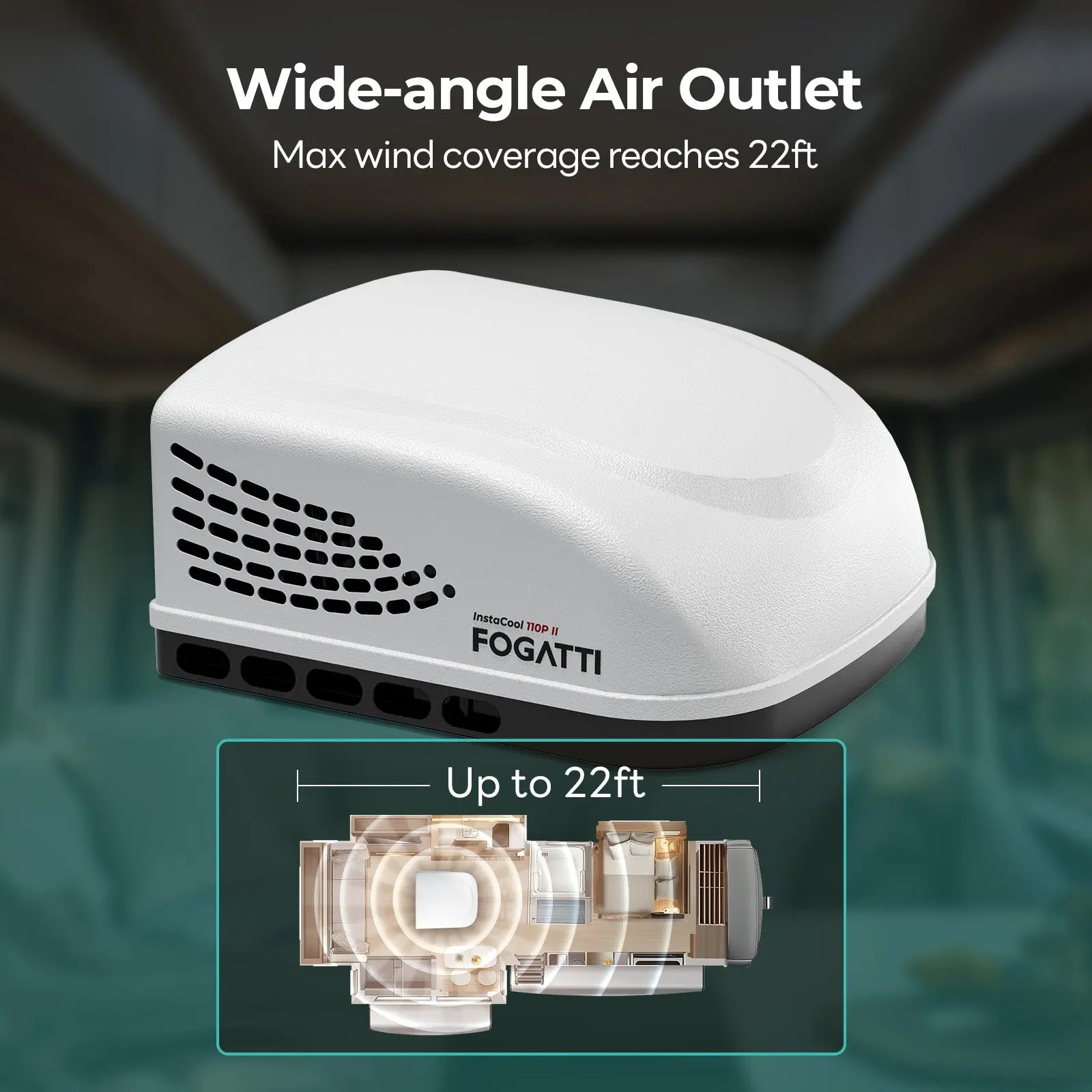

Experience optimum comfort with the FOGATTI Cargo Trailer AC. This innovative system allows customizable air distribution, ensuring every corner of your RV is cool. Whether you seek RV air conditioning revival or consistent airflow, this model meets all your needs.
Providing Quality Service:
Operating at 115V and 15.5A, the FOGATTI RV Rooftop Air Conditioner for Semi Truck is compatible with most RV power sources. We offer an 18-month warranty for your peace of mind. Designed for ease, our FOGATTI Fifth Wheel AC Unit saves time and effort during installation.
Choose the FOGATTI RV Air Conditioner to elevate your RV cooling experience. With its powerful 11,000 BTU capacity and user-friendly design, this quiet RV air conditioner is the ideal choice for every adventure-seeking RV enthusiast.
FREE Shipping, 3-5 Days FedEX / UPS Delivery
Hear it Straight From Our Pros and Users
Top Rated by Leading RV Retailer & Expert
More and more RV owners and businesses are choosing Fogatti as their preferred A.C. brand. Our high-quality standards in RV cooling, genuinely satisfying after-sales service, and cutting-edge manufacturing technology have earned their trust. Especially with the endorsements from various renowned American RV forums, Fogatti has become a leader in the industry.
Recommended by professional celebrities
Fogatti dominates the RV AC industry
Intense Warmth, Swift Cooling RV Marvel
Fast Cooling, Powerful Fan – Banish indoor heat instantly. Master RV climate, efficiency, and comfort – all in reach!
1500W Heating Band

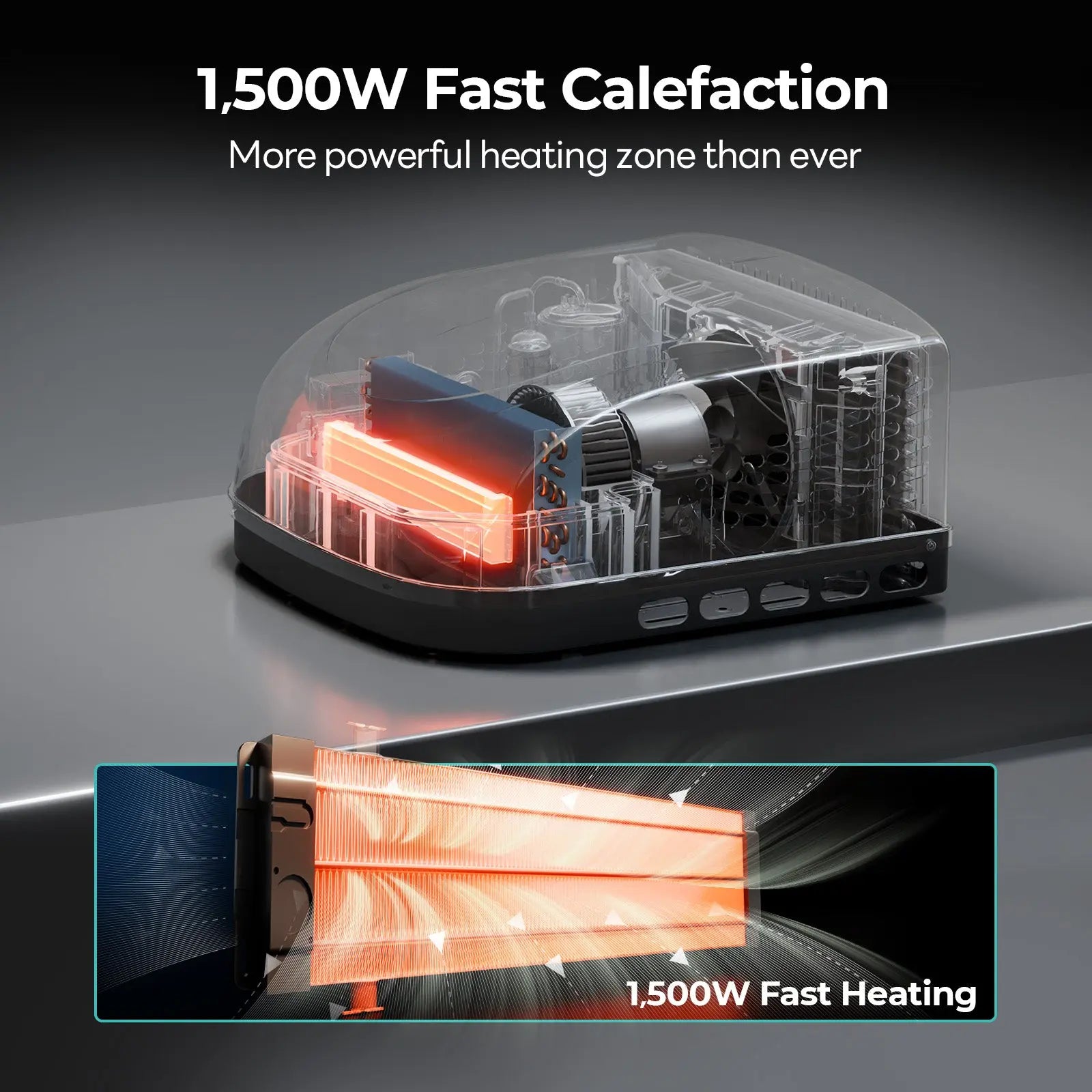

Harnessing the power of advanced 1500-watt PTC heating technology, this heating strip ensures swift and uniform warming throughout your space, providing cozy comfort whenever you need it
Air Fast-cooling

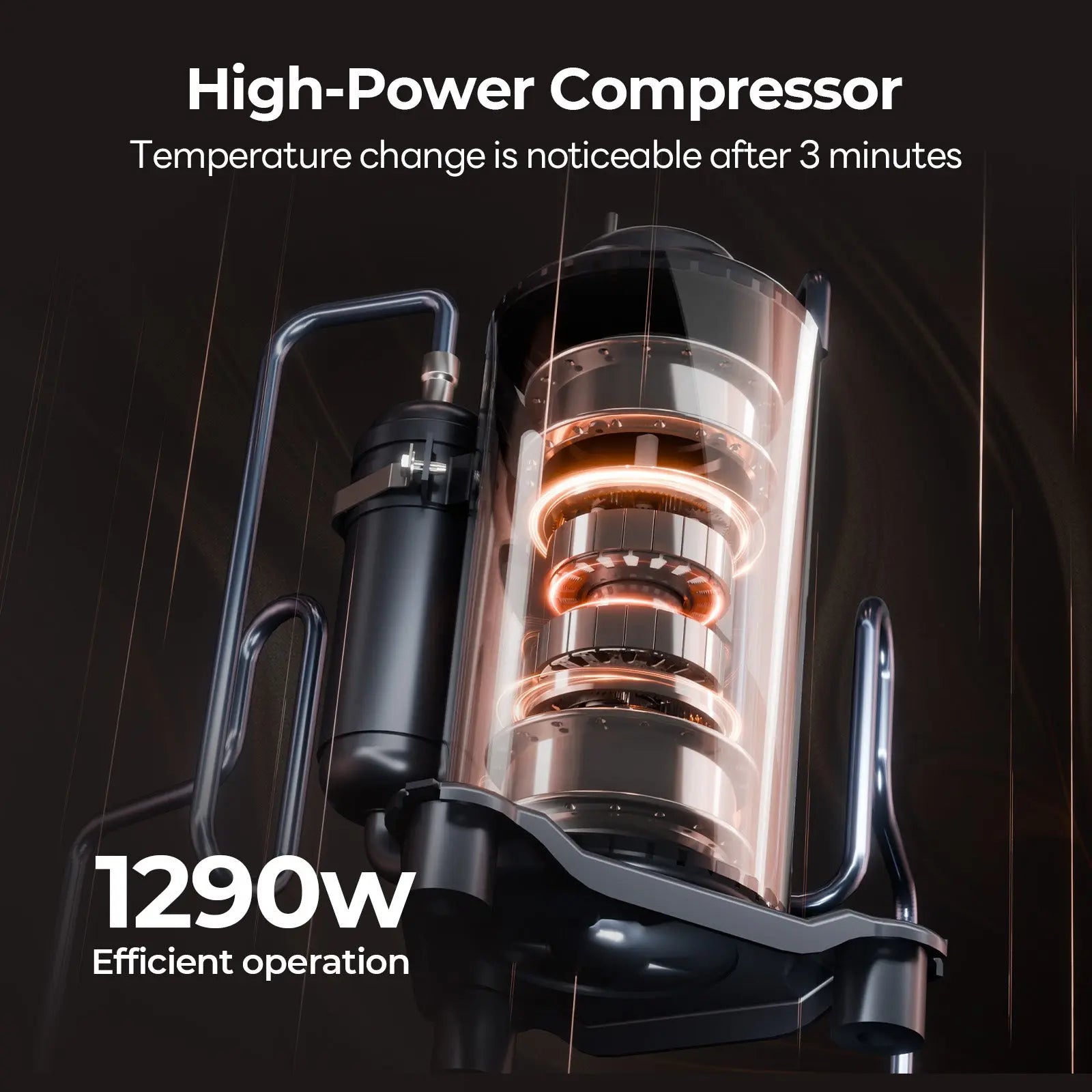

Equipped with a high-efficiency condensing compressor motor boasting 1290W power, capable of lowering temperatures to 61°F. Featuring 99.5% pure copper coils for stability and reliability
Powerful Fan
FOGATTI RV AC equipped with a high-speed fan spinning up to 1650 revolutions per minute, this large 8-inch fan is made of PP (Polypropylene), ensuring excellent durability and toughness
Expel Indoor Hot Quickly
The FOGATTI RV AC efficiently expels indoor heat with a 27.6 sq ft evaporator, 342 cooling fins, and 1/4 inch copper tubes, ensuring on-the-go cooling comfort for your journey
Harnessing the power of advanced 1500-watt PTC heating technology, this heating strip ensures swift and uniform warming throughout your space, providing cozy comfort whenever you need it
Equipped with a high-efficiency condensing compressor motor boasting 1290W power, capable of lowering temperatures to 61°F. Featuring 99.5% pure copper coils for stability and reliability
FOGATTI RV AC equipped with a high-speed fan spinning up to 1650 revolutions per minute, this large 8-inch fan is made of PP (Polypropylene), ensuring excellent durability and toughness
The FOGATTI RV AC efficiently expels indoor heat with a 27.6 sq ft evaporator, 342 cooling fins, and 1/4 inch copper tubes, ensuring on-the-go cooling comfort for your journey
Whisper Breeze Pure Comfort System
Enhance on-the-go comfort: Dry Air, Soft Flow, Low Noise, Fresh Breeze. Elevate travel where tranquility meets efficiency!
Comfortable Dry Air
Ensuring optimal temperature levels in comfortable humidity conditions, it boasts effective space control capabilities to enhance comfort, providing a pleasant environment
Soft Air Flow
Optimize the airflow direction through the ADB panel to evenly distribute filtered cold air, preventing discomfort caused by direct airflow to the head
Low Noise Operation
The ultimate solution for enhancing RV journeys and facilitating a peaceful sleep experience, it offers ultra-low operating noise levels, peaking at just 62 decibels
Fresh Air Flow
Equipped with an excellent air filtration system, it effectively filters various harmful particles and irritating gases, ensuring the healthiness of RV travels
Ensuring optimal temperature levels in comfortable humidity conditions, it boasts effective space control capabilities to enhance comfort, providing a pleasant environment
Optimize the airflow direction through the ADB panel to evenly distribute filtered cold air, preventing discomfort caused by direct airflow to the head
The ultimate solution for enhancing RV journeys and facilitating a peaceful sleep experience, it offers ultra-low operating noise levels, peaking at just 62 decibels
Equipped with an excellent air filtration system, it effectively filters various harmful particles and irritating gases, ensuring the healthiness of RV travels
Unrivaled RV Climate Mastery
Optimized RV Climate: Antifreeze Mode, Perfect Compatibility. Elevate your journey where tech meets performance!
High-Durability
Crafted from durable ABS material, it features robust resistance to impact, scratches, moisture, and corrosion, guaranteeing exceptional quality and longevity
Antifreezing Mode
The AI-controlled defrost function activates automatically when the temperature dips below 28 degrees Fahrenheit, ensuring the RV air conditioning operates smoothly
Excellent Compatibility
Featuring exceptional energy compatibility, it seamlessly integrates with solar panels, effectively minimizing energy consumption and enhancing sustainability
Crafted from durable ABS material, it features robust resistance to impact, scratches, moisture, and corrosion, guaranteeing exceptional quality and longevity
The AI-controlled defrost function activates automatically when the temperature dips below 28 degrees Fahrenheit, ensuring the RV air conditioning operates smoothly
Featuring exceptional energy compatibility, it seamlessly integrates with solar panels, effectively minimizing energy consumption and enhancing sustainability
RV AC Swift Install Efficiency
Effortless RV climate control: AC Mainframe, ADB Installation, Connection Guidelines. Upgrade your journey, all in your hands!
AC Mainframe Installation
Installation Guide for FOGATTI RV Air Conditioner: Detailed instructions and important tips are provided to ensure optimal performance and long-lasting use
ADB Installation
Connect the ceiling assembly or thermostat control wires to the rooftop unit connections. Connect the main power to the rooftop unit according to the manual
Connection Guidelines
Diagram and detailed instructions for connecting the Fogatti RV rooftop air conditioner are provided, ensuring straightforward installation and optimal performance
Installation Guide for FOGATTI RV Air Conditioner: Detailed instructions and important tips are provided to ensure optimal performance and long-lasting use
Connect the ceiling assembly or thermostat control wires to the rooftop unit connections. Connect the main power to the rooftop unit according to the manual
Diagram and detailed instructions for connecting the Fogatti RV rooftop air conditioner are provided, ensuring straightforward installation and optimal performance
Specification
Heat&Cool
Heat & Cool
Cool Only
Powerful cool
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Polar White
Polar White/Black
Polar White/Black
Polar White
29.5"D x 27.61"W x 14.2"H
29.5"D x 27.61"W x 14.2"H
29.5"D x 27.61"W x 14.2"H
29.5"D x 27.61"W x 14.2"H
11000BTU
15000BTU (With Heat Strip)
13500BTU
15000BTU
Single Zone or Multi-Zone
Single Zone or Multi-Zone
Single Zone or Multi-Zone
Single Zone or Multi-Zone
Mechanical Air Distribution Box or Return Air Grille w/ wall thermostat control kit or air distribution box w/ thermostat control kit
Mechanical Air Distribution Box or Return Air Grille w/ wall thermostat control kit or air distribution box w/ thermostat control kit
Mechanical Air Distribution Box or Return Air Grille w/ wall thermostat control kit or air distribution box w/ thermostat control kit
Mechanical Air Distribution Box or Return Air Grille w/ wall thermostat control kit or air distribution box w/ thermostat control kit
62 dB(A)
62 dB(A)
62 dB(A)
62 dB(A)
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
64.4°F~ 86°F(With heat pump)
64.4°F~ 86°F (With Heat Strip)
64.4°F~ 86°F
64.4°F~ 86°F
R- 410A
R- 410A
R- 410A
R- 410A
14.25" × 14.25"
14.25" × 14.25"
14.25" × 14.25"
14.25" × 14.25"
ABS Plastic
ABS Plastic
ABS Plastic
ABS Plastic
FAQ
How many Volts to run this?
It runs on 115 Volts/60HZ, 15.5A.
What is the AC unit size and required hole size?

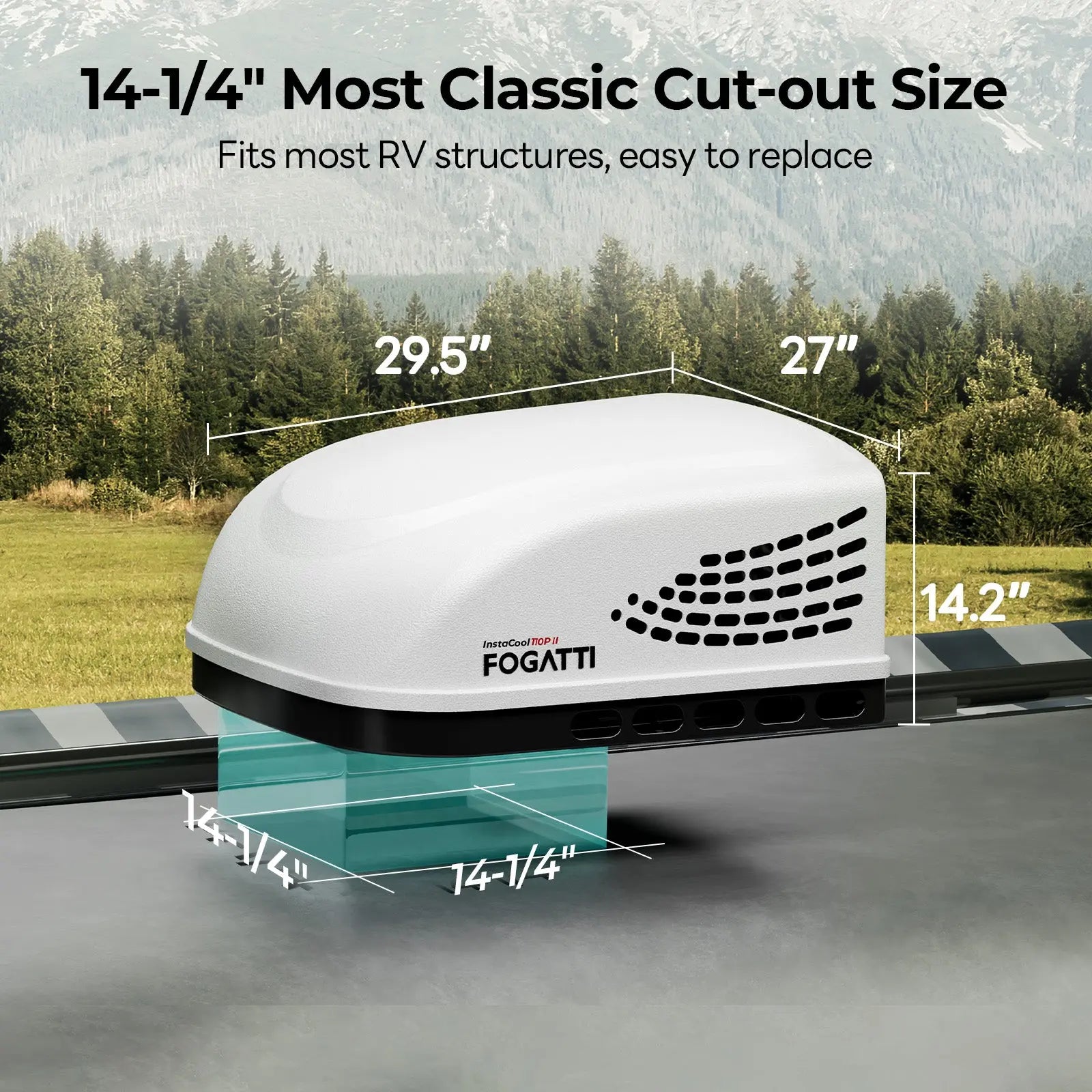

Main Body Size: 29.5" x 27.6" x 14.2". Standard opening size: 14±1/4" x 14±1/4".
How to start the cooling mode?
In standby mode, when turning on the machine, it will first start the fan for a self adjustment within 3 minutes, and then start cooling.
When just powered on, press the On-button of the remote controller to cool down.
What size hole is needed in the RV roof for installing this air conditioning unit?
Optimized: A 14-inch by 14-inch opening is required.
Is it possible to install this RV AC on a curved roof RV?
Optimized: Ideally installed on a flat roof with an inclination of less than 5 degrees.
