Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling with 12,500 Heating | Non-Ducted
🌎Earth Day Sale🌿 $100 OFF
Apply the code at checkout & enjoy the discount!
Features:
-
All-Season RV Comfort with Heat Pump: Enjoy 16,000 BTU cooling and 12,500 BTU heating in one rooftop unit. Designed to cover up to 600 sq. ft., it’s ideal for RVs up to 36 feet long.
- Fast Performance, High Efficiency: Experience rapid temperature control with a dual-motor, triple-fan system delivering 418 CFM airflow—30% faster cooling and heating. Feel the change in just 4 minutes. Rated EER 11.8 for energy-efficient performance with lower power consumption.
- Whisper-Quiet Operation: Enjoy the journey in peace—this unit runs as quietly as 43dB, ensuring restful sleep and undisturbed relaxation, day or night.
-
Versatile Control Options: Easily manage temperature and settings through 3 convenient methods:
- Remote control
- Touchscreen ADB panel
- WiFi app
- Smart Oscillation Upgrade: Upgrade to the Dual-Sync Motor ADB panel for automatic 0–85° swing, delivering even airflow throughout your RV cabin.
- Hassle-Free Installation: Non-ducted design fits standard 14.25" × 14.25" rooftop openings—no modification needed. Compatible with most RV types (excluding ducted systems). Includes sealing materials and a 5.3" bolt suitable for roof thicknesses from 1.2 to 5.0 inches.
- Road-Ready Design: Slim 12.2" profile easily clears low bridges and overhangs. The dual-layer base absorbs road vibrations, while foam insulation protects internal components—built to last through every mile.
- Eco-Friendly R-32 Refrigerant: Provides strong, efficient cooling with lower GWP and reduced environmental impact.
Specifications
Performance
- Cooling Capacity: 16,000 Btu/h
- Heating Capacity: 12,500 Btu/h
- Set Temp. Range: 61 ℉-86 ℉(16℃-30℃)
- Sound Level Pressure: ＜43 dB
- Refrigerant: R32
Electrical
- Volts/Frequency: AC 115V/60Hz
- Rated Input: 1270 W
- Rated Current: 11 A
Dimensions
- Indoor Unit Dimensions(ADB): 26.3" x 19.6" x 3.8"
- Rooftop Unit Dimensions: 42.4" x 28.4" x 12.2"
- Indoor Unit Net Weight: 12.1lbs
- Rooftop Unit Net Weight: 100.3lbs
- Installation Opening Dimensions: 14.25” x 14.25”
InstaCool Ultra User Manual
- Fast & Free Local Warehouse Shipping
- 30-Day Free Replacement & Return
- 24-Month Hassle-Free Warranty
FREE Shipping, 3-5 Days FedEX / UPS Delivery
Introducing Fogatti InstaCool Ultra
Coefficient of Performance
Coefficient of Performance is defined as the ratio of the cooling or heating capacity it provides to the electrical energy it consumes. A higher COP value means that the air conditioner is moreefficient.
Ambient operate Temp
Air conditioners built with higher-quality internal materials are more likely to operate smoothly in extremely low or high temp conditions. And these extreme temp scenarios are exactly what we frequently come across during RV travels.
Lifespan
With an innovative 2-motor & 3-fan heat exchange system, we spread out the cooling/heating load that used to fall on a single motor and fan. Think of it like upgrading from a three-cylinder to a six-cylinder car engine. The six-cylinder not only packs more power but also lasts longer.
9.2CC High Displacement Compressor
The ultra-high energy efficiency ratio allows the air conditioner to run longer when away from the public power grid, reducing electricity consumption at night by up to 31.4%.

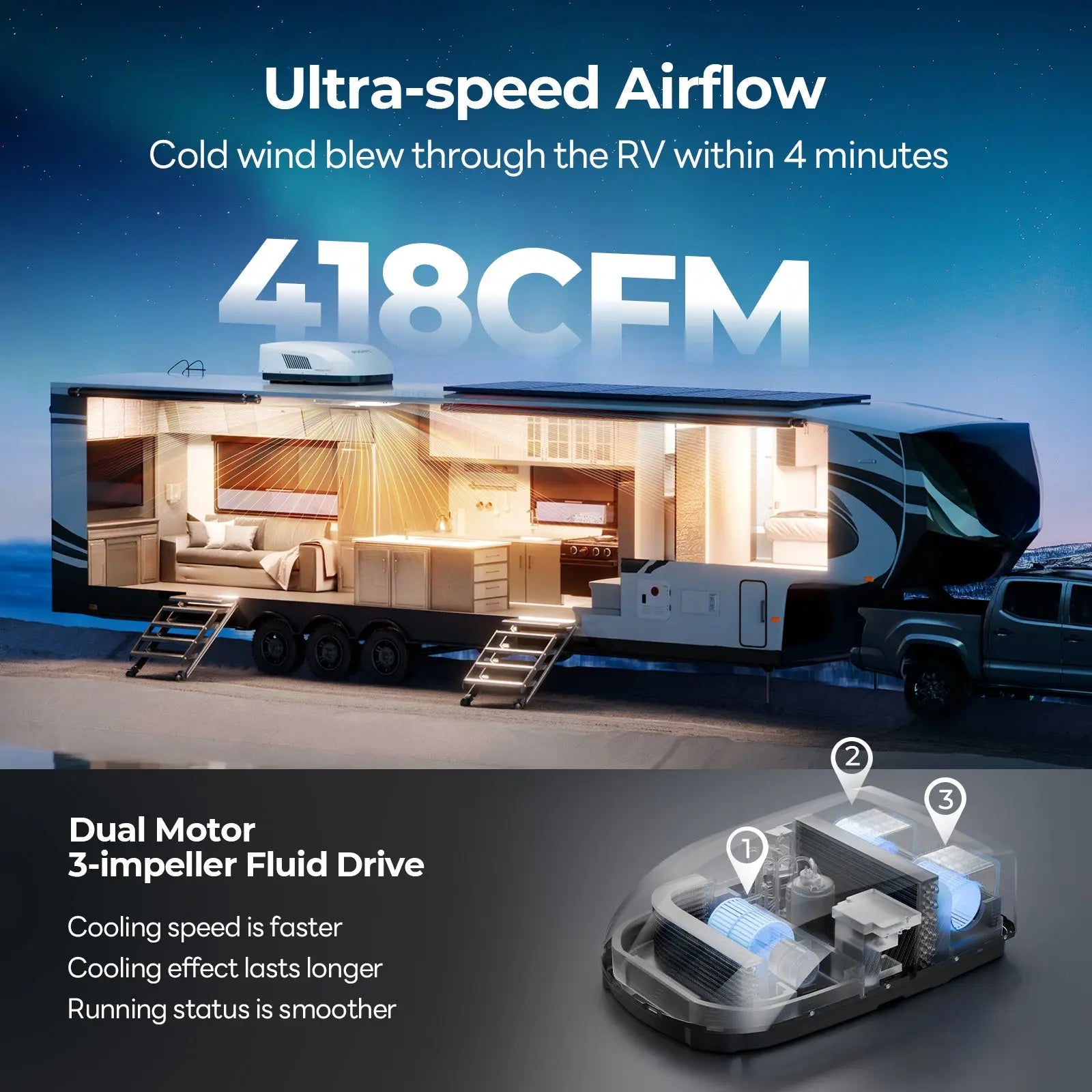

Dual Motor 3-impeller Fluid Drive
Upgraded fan system, with a huge air volume of 418CFM, which can cover 600 square feet and blow cold air across the entire car within 4 minutes.

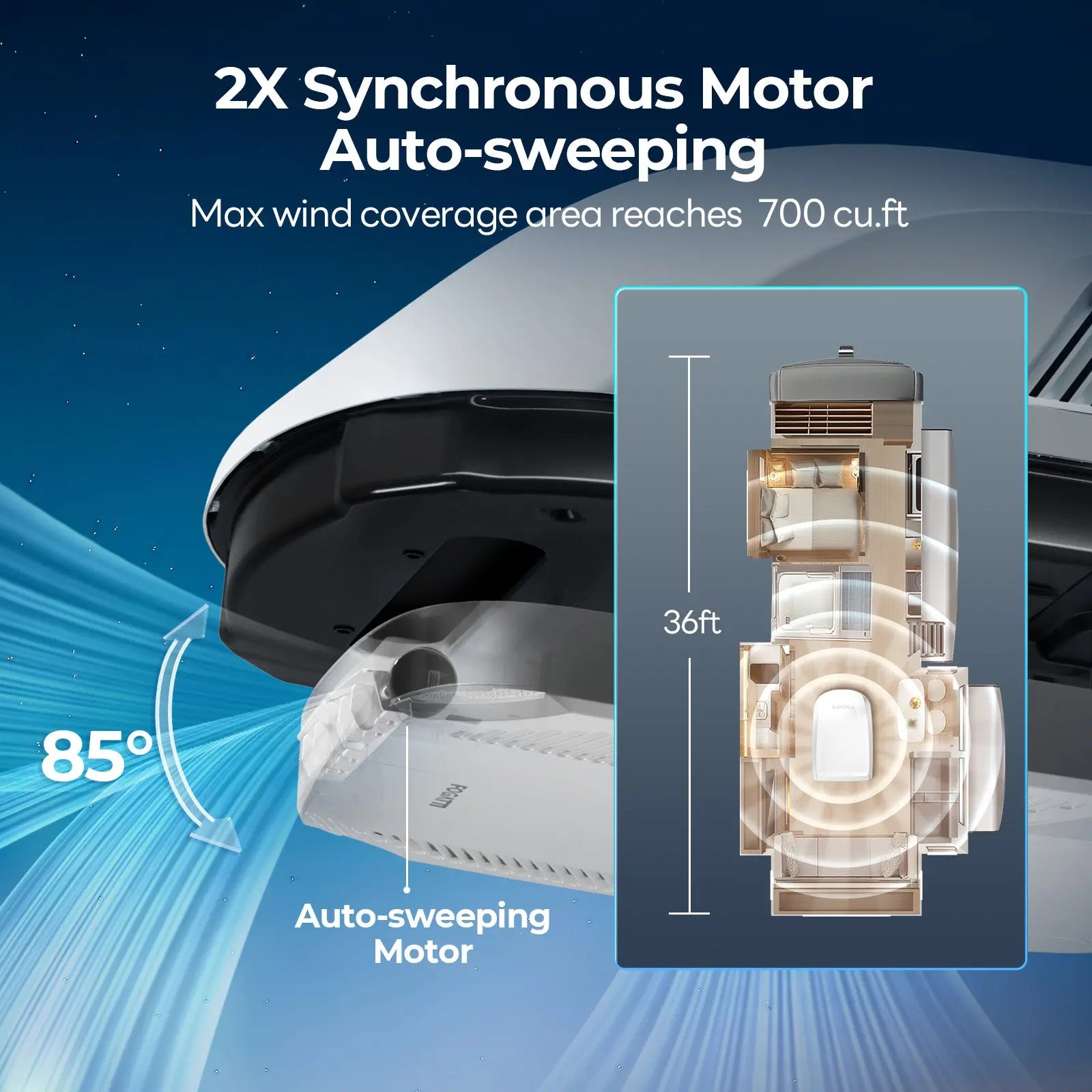

2X Synchronous Motor Auto-sweeping
4-way air supply system, 3D smooth air supply technology, more comfortable and avoid cold wind blowing directly on your head. Long-distance air supply, comprehensive coverage without blind spots. Short-distance air supply, precise and direct delivery, rapid cooling. Maximum wind coverage area up to 700 cubic feet.
9.2CC High Displacement Compressor
The ultra-high energy efficiency ratio allows the air conditioner to run longer when away from the public power grid, reducing electricity consumption at night by up to 31.4%.
Dual Motor 3-impeller Fluid Drive
Upgraded fan system, with a huge air volume of 418CFM, which can cover 600 square feet and blow cold air across the entire car within 4 minutes.
2X Synchronous Motor Auto-sweeping
4-way air supply system, 3D smooth air supply technology, more comfortable and avoid cold wind blowing directly on your head. Long-distance air supply, comprehensive coverage without blind spots. Short-distance air supply, precise and direct delivery, rapid cooling. Maximum wind coverage area up to 700 cubic feet.
Entering a sweet dream in whispers
The EPP frame can effectively absorb and reduce noise, keeping the air-conditioning sound below 43dB, making you feel like you are in the forest and feeling the breeze.
Intelligent Remote Control
Using the APP for remote control, you can only reserve and adjust the air-conditioning temperature. You can customize your comfortable RV space anytime and anywhere. You can fully control it on your mobile phone, and you can control the heating and cooling of your RV.
Choose Between the 2 Wind Modes
Sweeping Mode
Fast cooling, large area air supply Form
Braking Mode
Enhance comfort, rapid refrigeration form
Customize Your Comfortable Space with One Click
Cooling, heating, dehumidification, ventilation, sleep, timing functions, etc., customize your comfortable RV space with one click, say goodbye to repeated debugging, and enjoy a comfortable trip.
Breathe Easy on the Road
ADB has a built-in detachable filter and automatic filter cleaning reminder to prevent dust and impurities from being mixed into the air conditioning. The evaporator self-cleaning function removes dust, sterilizes, defrosts, and purifies, so you no need to worry about the air you breathe becoming dirty anymore.
Exquisite Design, Sleeker and Stronger
The shell is designed with a streamlined silhouette as thin as a supercar, with a double-bottom shock-proof structure, lower wind resistance and less vibration damage.
Installation Notes
Product Specs & List
Specification
Heat&Cool
Cool Only
Heat&Cool
Powerful Cool & Heat Pump Heating
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Replaceable Non-Ducted RV AC
Polar White
Polar White
Polar White
Arctic White
29.5"D x 27.6"W x 14.2"H
29.5"D x 27.6"W x 14.2"H
29.5"D x 27.6"W x 14.2"H
42.4"D x 28.3"W x 12.2"H
11000BTU (With Heat Strip)
13500BTU
15000BTU (With Heat Strip)
16,000 BTU cooling and 12,500 BTU heating
Single Zone
Single Zone
Single Zone
Single Zone
Air distribution box，Duct divide，Ceiling template，Wire controller and electric control box
Air distribution box，Duct divide，Ceiling template，Wire controller and electric control box
Air distribution box，Duct divide，Ceiling template，Wire controller and electric control box
ADB, remote control, air guide sponge and installation accessories
59dB(A)
59dB(A)
59dB(A)
43dB(A)
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
115V AC/60 Hz/1 PH
61°F～ 88°F
61°F～ 88°F
61°F～ 88°F
61°F～ 86°F
R32 refrigerant
R32 refrigerant
R32 refrigerant
R32 refrigerant
14.25 x 14.25-inch vents and ADB for 1.5-5.0 inches thick roof
14.25 x 14.25-inch vents and ADB for 1.5-5.0 inches thick roof
14.25 x 14.25-inch vents and ADB for 1.5-5.0 inches thick roof
14.25 x 14.25-inch vents and ADB for 1.2-5.0 inches thick roof
HIPS Plastic
HIPS Plastic
HIPS Plastic
PP
FAQ
Is Fogatti InstaCool Ultra compatible with ducted RV AC systems?
No. The Fogatti InstaCool Ultra is designed for non-ducted RV roof air conditioning systems only.
Will InstaCool Ultra fit my RV roof opening and replace my old RV air conditioner?
InstaCool Ultra fits the standard 14.25" x 14.25" roof opening and is designed for many non-ducted RV air conditioner replacements. Please confirm roof thickness, electrical setup, and overall system compatibility before purchase.
What does heat pump mean on this RV air conditioner?
A heat pump RV air conditioner gives you cooling and heating in one rooftop unit. On InstaCool Ultra, that means 16,000 BTU cooling and 12,500 BTU heating for more flexible RV comfort across more seasons.
What size RV is InstaCool Ultra best for?
InstaCool Ultra is designed to cover up to 600 sq. ft. and is a strong fit for RVs up to 36 feet long. Actual performance can vary based on insulation, ceiling height, sun exposure, and RV layout.
What voltage and power does this RV air conditioner use?
InstaCool Ultra uses 115V / 60Hz power, with a rated input of 1270W and rated current of 11A. Please confirm compatibility with your RV power system before purchase.
How quiet is the Fogatti InstaCool Ultra RV air conditioner?
InstaCool Ultra is rated at under 43 dB sound pressure, helping provide quieter RV comfort for rest, sleep, and everyday use.
