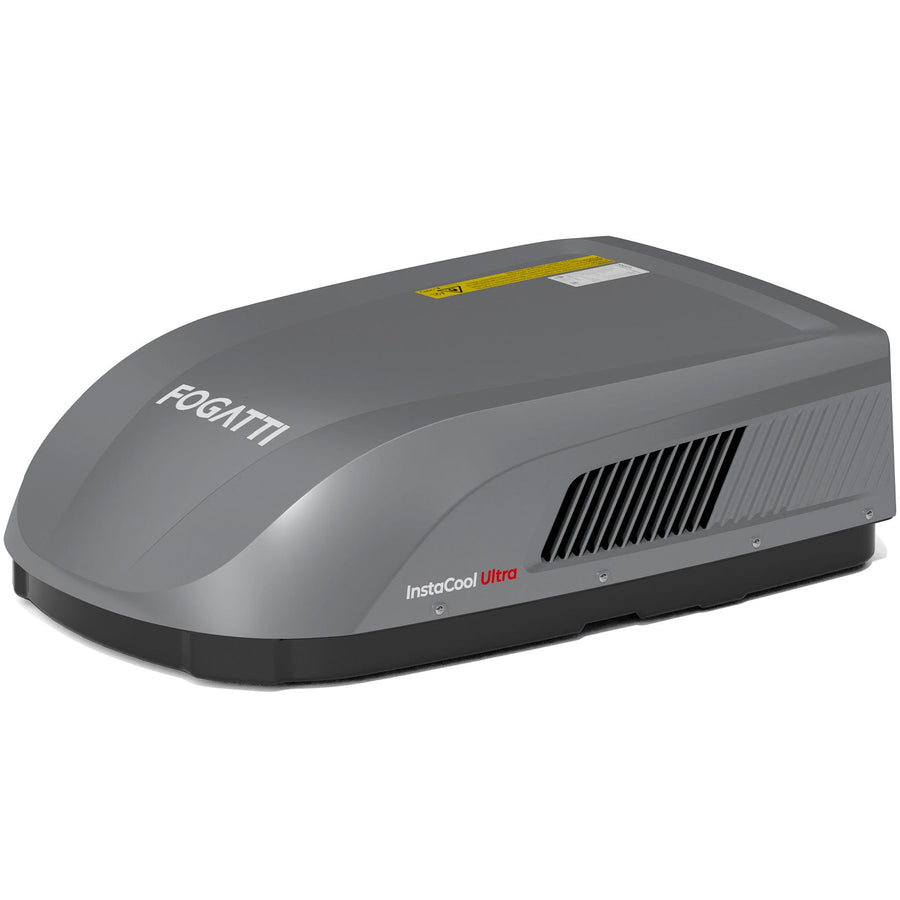

Open Box - Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling with 12,500 Heating | Non-Ducted
Features:
-
All-Season RV Comfort with Heat Pump: Enjoy 16,000 BTU cooling and 12,500 BTU heating in one rooftop unit. Designed to cover up to 600 sq. ft., it’s ideal for RVs up to 36 feet long.
- Fast Performance, High Efficiency: Experience rapid temperature control with a dual-motor, triple-fan system delivering 418 CFM airflow—30% faster cooling and heating. Feel the change in just 4 minutes. Rated EER 11.8 for energy-efficient performance with lower power consumption.
- Whisper-Quiet Operation: Enjoy the journey in peace—this unit runs as quietly as 43dB, ensuring restful sleep and undisturbed relaxation, day or night.
-
Versatile Control Options: Easily manage temperature and settings through 3 convenient methods:
- Remote control
- Touchscreen ADB panel
- WiFi app
- Smart Oscillation Upgrade: Upgrade to the Dual-Sync Motor ADB panel for automatic 0–85° swing, delivering even airflow throughout your RV cabin.
- Hassle-Free Installation: Non-ducted design fits standard 14.25" × 14.25" rooftop openings—no modification needed. Compatible with most RV types (excluding ducted systems). Includes sealing materials and a 5.3" bolt suitable for roof thicknesses from 1.2 to 5.0 inches.
- Road-Ready Design: Slim 12.2" profile easily clears low bridges and overhangs. The dual-layer base absorbs road vibrations, while foam insulation protects internal components—built to last through every mile.
- Eco-Friendly R-32 Refrigerant: Provides strong, efficient cooling with lower GWP and reduced environmental impact.
Specifications
Performance
- Cooling Capacity: 16,000 Btu/h
- Heating Capacity: 12,500 Btu/h
- Set Temp. Range: 61 ℉-86 ℉(16℃-30℃)
- Sound Level Pressure: ＜43 dB
- Refrigerant: R32
Electrical
- Volts/Frequency: AC 115V/60Hz
- Rated Input: 1270 W
- Rated Current: 11 A
Dimensions
- Indoor Unit Dimensions(ADB): 26.3" x 19.6" x 3.8"
- Rooftop Unit Dimensions: 42.4" x 28.4" x 12.2"
- Indoor Unit Net Weight: 12.1lbs
- Rooftop Unit Net Weight: 100.3lbs
- Installation Opening Dimensions: 14.25” x 14.25”
InstaCool Ultra User Manual
- Fast & Free Local Warehouse Shipping
- 30-Day Free Replacement & Return
- 24-Month Hassle-Free Warranty
Open Box - Fogatti InstaCool Ultra Rooftop RV Air Conditioner with Heat Pump | 16,000 BTU Cooling with 12,500 Heating | Non-Ducted
Sale price$1,169.99 USD
Regular price$1,759.99 USD (/)
InstaCool Ultra
INSTACOOL ULTRA
A 16,000 BTU RV air conditioner that runs below 43 dB in low mode.
Designed for non-ducted RVs up to 36 feet, InstaCool Ultra also provides 12,500 BTU heat-pump heating for mild-weather travel.
16KCooling capacity
12.5KHeat-pump capacity
418 CFMAirflow
<43 dBLow-mode sound
Why InstaCool Ultra cools a hot RV sooner.
A 9.2 cc compressor supplies the cooling capacity. A dual-motor, three-impeller system moves 418 CFM of air through the cabin.
01 · 9.2 CC COMPRESSOR
A larger compressor shortens the wait after a hot drive.
It helps the RV recover after a hot drive or a campsite with little shade, when cooling performance matters most.
11.8 EER
16,000 BTU cooling
02 · 418 CFM AIRFLOW
418 CFM moves conditioned air beyond the ceiling.
Separate indoor and outdoor motors work with three impellers to move cooled or heated air beyond the ceiling area and into the cabin.
418 CFM
3 impellers
COOLING AND HEAT-PUMP HEATING
Cooling in summer. Heat-pump heating in mild weather.
InstaCool Ultra provides 16,000 BTU cooling and 12,500 BTU heat-pump heating. For freezing conditions, use a properly sized RV furnace.
Designed for a 14.25-inch non-ducted roof opening.
The rooftop unit is 12.2 inches high and supports roof thicknesses from 1.2 to 5.0 inches.
ROOFTOP PROFILE
The rooftop unit is only 12.2 inches high.
The streamlined housing reduces rooftop bulk. A dual-layer base and internal insulation help protect the unit during regular travel.
FIT REQUIREMENTS
Four things to confirm before installation.
- Opening
- 14.25 × 14.25 in
- Roof thickness
- 1.2–5.0 in
- Electrical
- 115V / 60Hz
- Ceiling layout
- Non-ducted ADB
Choose the right InstaCool for your RV.
Choose Ultra for quieter all-season use, Pro 18K for maximum summer cooling, or Pro Max for higher output with ducted or non-ducted installation.
InstaCool Ultra
For non-ducted RVs where lower nighttime noise and mild-weather heating matter.
- Output
- 16K cool / 12.5K heat
- Installation
- Non-ducted
- Standout
- Below 43 dB
InstaCool Pro 18K
For medium-to-large RVs that need 18,000 BTU cooling and do not need heat-pump heating.
- Output
- 18K cooling only
- Installation
- Ducted or non-ducted
- Standout
- App + voice control
InstaCool Pro Max
For larger RVs that need 18,000 BTU cooling, 16,000 BTU heat-pump heating and flexible installation.
- Output
- 18K cool / 16K heat
- Installation
- Ducted or non-ducted
- Standout
- Dual variable-speed motors
See the installation and performance tests.
These independent videos cover rooftop replacement, cabin cooling and noise, and operation from an inverter and battery system.
INSTALL & REVIEW
A complete rooftop replacement
Removal of the old unit, roof preparation, sealing, installation and startup.
PERFORMANCE TEST
Cooling, heat-pump operation and cabin noise
A practical look at the features after the unit is installed.
OFF-GRID TEST
Running InstaCool Ultra from an inverter
Startup demand, power draw and cabin performance away from hookups.
Check the fit before you order.
Measure the roof opening, confirm the ceiling layout and verify the power supply before ordering.
Specifications
- Cooling capacity
- 16,000 BTU/h
- Heat-pump capacity
- 12,500 BTU/h
- Airflow
- 418 CFM
- Low-mode sound
- Below 43 dB
- Set temperature
- 61–86°F
- Refrigerant
- R32
- Power supply
- 115V / 60Hz
- Rated input / current
- 1270W / 11A
- Rooftop dimensions
- 42.4 × 28.4 × 12.2 in
- Rooftop unit weight
- 100.3 lb
- Roof opening
- 14.25 × 14.25 in
- Roof thickness
- 1.2–5.0 in
Frequently asked questions
What roof opening does InstaCool Ultra require?
It requires a 14.25 × 14.25 in roof opening, a roof thickness of 1.2–5.0 in and a non-ducted ceiling layout. Measure all three before ordering.
Can I use it with a ducted ceiling system?
No. This InstaCool Ultra configuration is non-ducted and uses an air distribution box inside the RV. Choose a ducted-compatible InstaCool model if your current system uses ceiling ducts.
What electrical service does it require?
It requires 115V / 60Hz power and is rated at 1270W and 11A. Confirm the circuit and wiring before installation.
What size RV is it intended for?
Fogatti positions Ultra for RVs up to approximately 36 ft and spaces up to about 600 sq. ft. Actual results depend on insulation, floor plan, humidity, direct sun and outdoor temperature.
Can the heat pump replace an RV furnace?
No. The heat pump is intended for mild cold and shoulder-season travel. Use a properly sized RV furnace in freezing or severe cold.
How can I control the unit?
Use the Fogatti WiFi app, handheld remote or touchscreen air distribution box to adjust temperature, mode and timing.
How loud is it in low mode?
Low-mode sound is rated below 43 dB. What you hear inside can still vary with fan mode, installation quality, RV construction and the distance between the bed and the air distribution box.
Can it run from an inverter or battery bank?
Yes, but only if the inverter, battery bank, charging system and wiring can support continuous operation and compressor startup demand. Check the complete power system before relying on off-grid use.
What comes with the installation kit?
The product includes sealing materials and a 5.3 in mounting bolt for supported roof thicknesses. Inspect the opening, roof surface and electrical connection before installation.
Is professional installation recommended?
Yes. The job involves lifting a 100.3 lb rooftop unit, sealing the roof opening and working with 115V electrical service. Experienced owners may complete the replacement, but a qualified RV technician or electrician is the safer choice when any step is unfamiliar.
